Raritan Smart Toilet Control – Suits Most 12V and 24V Toilets with Separate Water Supply (4188610)
Normal Flush, Water Saver, Water Only and Empty Only
Timing is Front Panel Programmable
Suits Fresh and Salt Water Flush Systems

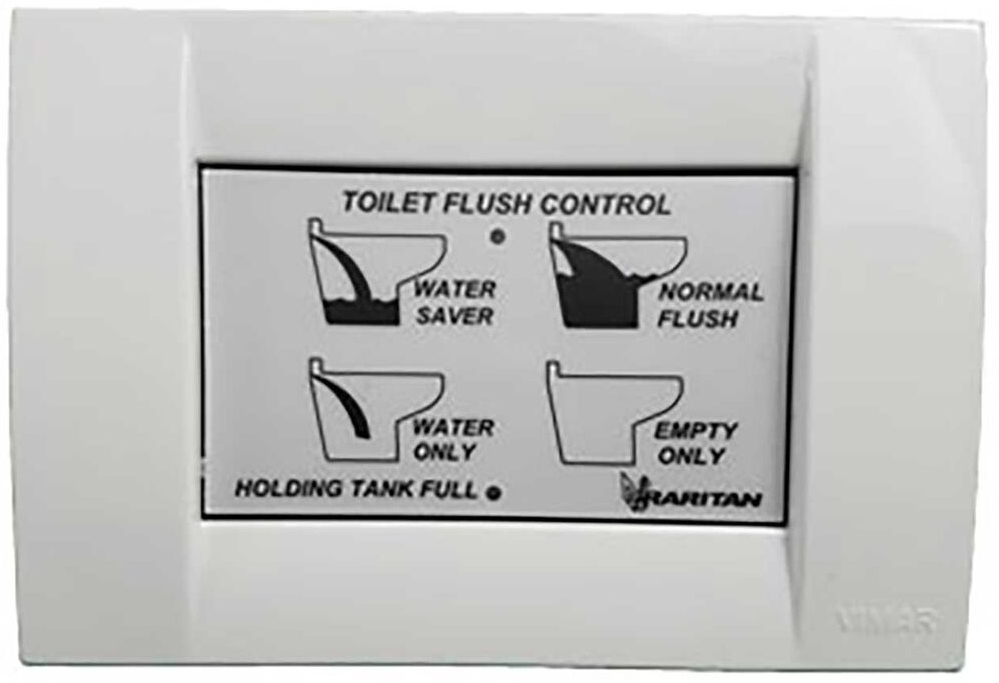

Smart Toilet Control (STC) is a controller for flushing toilet to optimize water use without compromising the quality of flush.

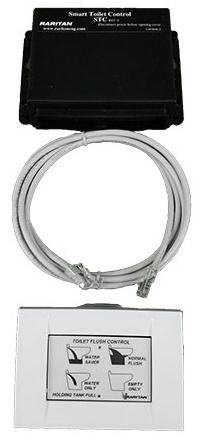

Control consists of a controller, panel and 7’ of cable.

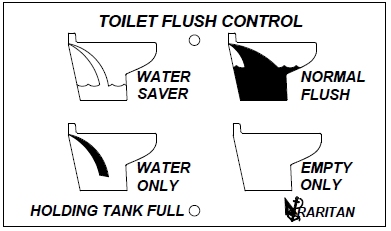

STC is designed to automatically start a flushing cycle if NORMAL FLUSH or WATER SAVER buttons are pressed.
WATER ONLY button brings inlet water to the bowl when pressed and EMPTY ONLY button evacuates the bowl. Both water only and empty button have a time limit of eight seconds.
Flush timing of initial fill, discharge and final fill are fully programmable from the panel. If wired, the panel also shows holding tank full status. When holding tank full LED is lit, normal and water saver button are disabled. Water only and empty button continue to function. Control is reverse polarity protected. In case of reverse polarity motors and solenoid will activate as soon as power is connected. After reverse polarity is corrected (within 10 minutes), unit will work as normal.
