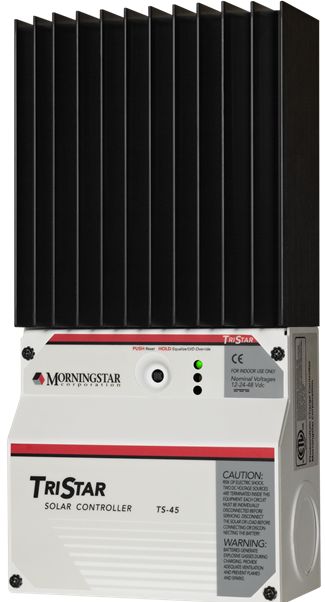

Morningstar TriStar PWM 60 amp Solar Panel Regulator

Charge Controller (SR-TS-60)

 Ideal for use in Marine-Boats, Caravans, Motor homes and RV’s

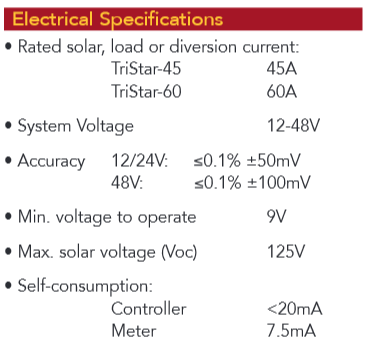

Morningstar's TriStar™ is a three-function controller that provides reliable solar battery charging, load control or diversion regulation. It is rated at 45 or 60 amps, both at 12-48 volts, and has an optional meter, remote meter and remote temperature sensor.

Features:

  • Highest Reliability
  • More Power
  • Communications Capability
  • Fully Adjustable
  • Extensive Electronic Protections
  • Programmable Lighting Control
  • Simple Mechanical Interface
  • Better Battery Charging
  • More Information
  • Easy to Reset
  • Low Telecom Noise
  • Warranty: 5 Years

Options:

  • TriStar Digital Meter (SR-TS-M-2) for use with both TS and TS-MPPT Solar Controllers
    • Replaces the LED indicator light panel on the controller to give enable an LCD readout
    • The meter will display a great deal of information about the TriStar controller and the operation of your system. In addition, the meter enables manual functions and controller diagnostics. These capabilities will increase your confidence that the system is working properly and will help you to improve system reliability, battery life, and system performance. It is worth the time getting to know your meter!

  • TriStar Remote Digital Meter (SR-TS-RM-2) TriStar Remote Digital Meter for use with TS & TS-MPPT
    • The meter is compatible with the TriStar, TriStar MPPT, TriStar MPPT 600V, and MeterHub. It displays the same data as the TS-M-2, however, it does not mount to the controller. It ships with 30 meters of cable and a flat face plate for convenient mounting away from the controller. The meter enables manual functions and controller diagnostics. These capabilities will increase your confidence that the system is working properly and will help you to improve system reliability, battery life, and system performance.

  • TriStar Meter Hub (SR-Hub-1) Enable multiple solar controllers to share a single LCD meter and display both single and aggregated controller data.
    • Enables multiple controllers to share a single TriStar meter and display both single controller data (TriStar #1, TriStar #2…) as well as aggregated data for the entire system.
    • Enables multiple controllers to share a single Relay Driver and fully utilize all 4 channels of the Relay Driver for different functions (alarms, load disconnects, generator starts) from multiple products.
    • The MeterHub allows up to 15 Morningstar products on a single MeterBus network. The product electrically isolates devices that supply power to the network, preventing damage to the network in the event of grounding problems. Five status LED’s indicate the proper network connection to each port. The MeterHub is suitable for either wall or DIN rail mounting.



Circuit Protection (Circuit Breakers and Fuses)

*Excerpt from Blue Sea Systems https://www.bluesea.com/support/articles/Circuit_Protection/98/DC_Circuit_Protection

Choosing an Amperage Rating – Generally, circuit protection devices are installed to protect the wiring from overheating during overloads or faults. The simplest approach for selecting a circuit protection device rating is to choose an amperage rating that is equal to or less than the current rating, ampacity of the wire. If the wire ampacity is significantly greater than the load current, as might be with small loads or with wiring of increased size to reduce voltage drop, then a range of circuit protection values between the load requirement and the wire ampacity may be acceptable. Larger ampacity values reduce the probability of nuisance failures and reduce fuse heating; smaller ampacity values provide more conservative protection for the wiring.

In some cases, a product manufacturer may recommend that a specific fuse or circuit breaker size should be used with the product. If that is the case, the wire to the product should be selected so that the wire ampacity exceeds the recommended rating, which will protect both the product and the wiring.

We recommend Enerdrive waterproof surface mount re-settable circuit breakers for performance and value;

  • 25A Surface Mount Resettable Waterproof Circuit Breaker
  • 30A Surface Mount Resettable Waterproof Circuit Breaker
  • 40A Surface Mount Resettable Waterproof Circuit Breaker
  • 50A Surface Mount Resettable Waterproof Circuit Breaker
  • 60A Surface Mount Resettable Waterproof Circuit Breaker
  • 70A Surface Mount Resettable Waterproof Circuit Breaker
  • 80A Surface Mount Resettable Waterproof Circuit Breaker
  • 100A Surface Mount Resettable Waterproof Circuit Breaker
  • 120A Surface Mount Resettable Waterproof Circuit Breaker

Additional information

Weight 2.5 kg
Dimensions 32 × 20 × 10 cm
