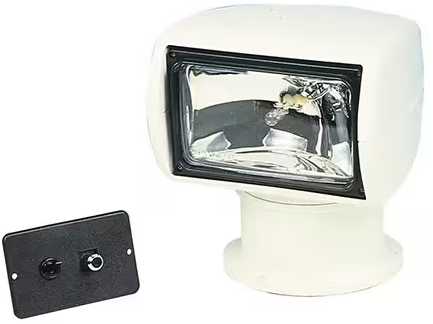

Jabsco 135SL Remote Control Searchlight Kit – 12 Volt – 4 Amp – Electronic Remote Panel – 100,000 CP Halogen (J60-100)

Sale!
Jabsco 135SL Remote Control Searchlight Kit - 12 Volt - 4 Amp - Electronic Remote Panel - 100,000 CP Halogen (J60-100)

Original price was: $697.00.Current price is: $649.00.

Jabsco 135SL Remote Control Searchlight Kit - 12 Volt - 4 Amp - Electronic Remote Panel - 60020-7014 (J60-099)
  Our Website DOES NOT ACCEPT PAYMENTS. Please complete your enquiry and checkout. We will send you a quote with AVAILABILITY, PRICE & FREIGHT (if required)
or Call Now 0755 292 544

Jabsco 135SL Remote Control Searchlight Kit – 12 Volt

3.6 Amp – Electronic Remote Panel – 60020-000 (J60-100)

We ship Australia wide – ask us for a quote!

REMOTE CONTROL SEARCH LIGHT

FEATURES

  • Constructed of noncorrosive materials
  • Sealed beam halogen lamp
  • Remote control and 15′ cable in clud ed
  • Long life gear drive
  • Low amp draw
  • Patented clutch mechanism prevents motor damage when running against limit stops

APPLICATION

Ideal for boaters…locate buoys, moorings, channel markers, etc. Ideal for RV’ers…pin point road signs, campsites, or use as backup light.

SPECIFICATIONS

  • 320° horizontal movement
  • 75° vertical sweep
  • 50 watt 3-1/2″ x 6″ bulb
  • White thermoplastic housing and base

 Electronic Remote Control Panel

Spare Parts

  • Jabsco Searchlight Spare Parts – All Spare Parts Suitable for Jabsco Searchlights

Jabsco 155SL

  • STANDARD MODEL – J60-102 155SL searchlight 12 volt with standard control panel – Jabsco model 61050-0012
    • J65-130 – Replacement Standard Control Panel – Jabsco Model 60030-0000
    • J61-120 – Dual Station Control Kit – Jabsco Model 43670-0004
    • J65-122 – Replacement Globe – Jabsco Model 18753-0528
  • DELUXE MODEL – J60-103 155SL searchlight 12/24 volt with electronic panel – Jabsco model 61050-1224
    • J65-133 – Replacement Standard Control Panel – Jabsco Model 43690-1000
    • J61-119 – Dual Station Control Kit – Jabsco Model 64044-0000
    • J65-122 – Replacement Globe – Jabsco Model 18753-0528

Jabsco 233SL

  • J60-115 12 volt 10 amp 233SL searchlight – Jabsco 60233-0012
  • J60-116 24 volt 5 amp 233SL searchlight – Jabsco 60233-0024
  • J65-242 Secondary wireless controller suits both 12 + 24v – Jabsco 63233-1224

Jabsco 135SL

  • J60-100 12 volt 3.6 amp searchlight with standard panel – Jabsco 60020-0000
    • J65-130 – Replacement Standard Control Panel – Jabsco Model 60030-0000
    • J61-118 – Dual Station Control Kit – Jabsco Model 43670-0005
    • J65-100 – Replacement Globe – Jabsco Model 18753-0178
  • J60-099 12 volt 3.6 amp searchlight with electronic panel – Jabsco 60020-7014
    • J65-131 – Replacement Standard Control Panel – Jabsco Model 43670-0003
    • J61-118 – Dual Station Control Kit – Jabsco Model 43670-0005
    • J65-100 – Replacement Globe – Jabsco Model 18753-0178
  • J60-101 24 volt 2 amp searchlight with electronic panel – Jabsco 60020-7015
    • J65-131 – Replacement Standard Control Panel – Jabsco Model 43670-0003
    • J61-120 – Dual Station Control Kit – Jabsco Model 43670-0004
    • J65-100 – Replacement Globe – Jabsco Model 18753-0178

Jabsco 146SL

  • J60-105 12 volt 4 amp 146SL searchlight – Jabsco 60080-0012
    • J65-131 – Replacement Standard Control Panel – Jabsco Model 43670-0003
    • J61-120 – Dual Station Control Kit – Jabsco Model 43670-0004
    • J65-102 – Replacement Globe – Jabsco Model 18753-0455
  • J60-106 24 volt 2 amp 146SL searchlight – Jabsco 60080-0024
    • J65-131 – Replacement Standard Control Panel – Jabsco Model 43670-0003
    • J61-120 – Dual Station Control Kit – Jabsco Model 43670-0004
    • J65-102 – Replacement Globe – Jabsco Model 18753-0455

Jabsco 255SL

  • J60-107 12 volt 8 amp 255SL searchlight – Jabsco 60010-2012
    • J65-131 – Replacement Standard Control Panel – Jabsco Model 43670-0003
    • J61-120 – Dual Station Control Kit – Jabsco Model 43670-0004
    • J65-103 – Replacement Globe – Jabsco Model 18753-0336
  • J60-108 24 volt 4 amp 255SL searchlight – Jabsco 60010-2024
    • J65-132 – Replacement Standard Control Panel – Jabsco Model 60070-0000
    • J61-122 – Dual Station Control Kit – Jabsco Model 18753-0335
    • J65-103 – Replacement Globe – Jabsco Model 18753-0336

Jabsco Chrome Brass Remote Searchlight Kit

  • J60-109 12 volt Fuse 10 amp 125mm (5″) light diameter – Jabsco 62026-4002H
    • 100,000 candlepower spot/ 50,000 CP flood. Spot range 300 metres
    • J65-131 – Replacement Standard Control Panel – Jabsco Model 43670-0003
    • J61-120 – Dual Station Control Kit – Jabsco Model 43670-0004
    • J65-104 – Replacement Globe – Jabsco Model 67296-0000
  • J60-111 12 volt Fuse 20 amp 175mm (7″) light diameter – Jabsco 62040-4002
    • 200,000 candlepower – spot only. Spot range 418 metres
    • J65-131 – Replacement Standard Control Panel – Jabsco Model 43670-0003
    • J61-120 – Dual Station Control Kit – Jabsco Model 43670-0004
    • J65-105 – Replacement Globe – Jabsco Model 67262-0000
  • J60-112 24 volt Fuse 10amp 175mm (7″) light diameter – Jabsco 62040-4006
    • 230,000 candlepower – spot only. Range – 418 metres
    • J65-132 – Replacement Standard Control Panel – Jabsco Model 600700-0000
    • J61-122 – Dual Station Control Kit – Jabsco Model 18753-0335
    • J65-106 – Replacement Globe – Jabsco Model 18753-0447
  • J60-114 24 volt Fuse 10 amp 200mm (8″) light diameter – Jabsco 62042-4006
    • 500,000 candlepower – spot only. Range – 719 metres
    • J65-132 – Replacement Standard Control Panel – Jabsco Model 60070-0000
    • J61-122 – Dual Station Control Kit – Jabsco Model 18753-0335
    • J65-108 – Replacement Globe – Jabsco Model 98040-0520

JABSCO Wiring Cable Extension Harnesses

These heavy duty wiring harness extensions allow control panels to be fitted further away from the searchlight. They have plug-in connectors each end.

  • J61-123          3 metre (10 Ft) harness – Jabsco 43990-0013
  • J61-124          4.5 metre (15 Ft) harness – Jabsco 43990-0014
  • J61-125          7.6 metre (25 Ft) harness – Jabsco 43990-0015
  • J61-126          10.6 metre (35 Ft) harness – Jabsco 43990-0016

Above wiring harnesses suit ALL searchlights except J60-103

NB: Harnesses below suit only J60-103 155SL deluxe which has a dual 12/24v electronic remote control.

  • J61-127          4.5 metre (15 Ft) harness – Jabsco 64042-1007
  • J61-128          7.6 metre (25 Ft) harness – Jabsco 64042-1008

Other Jabsco Searchlight Spare Parts

  • J65-109          12v bulb suit old 7″ lever lights – Jabsco 43990-0048
  • J65-110          24v bulb suit old 7″ lever lights – Jabsco 66165-0000
  • J65-115          12v bulb suit docking lights – Jabsco 18753-0287
  • J65-116          24v bulb suit docking lights – Jabsco 18753-0462
  • J65-200          Base for 135SL searchlight – Jabsco 60027-1000
  • J65-201          Lower housing 135 searchlight – Jabsco 60024-1000
  • J65-202          Upper housing 135 searchlight – Jabsco 60023-1000
  • J65-203          Bulb retainer kit – Jabsco 60035-1000
  • J65-210          Base & gasket 146/255SL – Jabsco 60088-1000
  • J65-211          Upper housing 146SL – Jabsco 60086-1000
  • J65-212          Lower housing 146SL – Jabsco 60072-1000
  • J65-214          Drive arm/gear 146/255SL – Jabsco 18753-0457
  • J65-215          Bulb housing and retainer kit – Jabsco 60083-1000
  • J65-220          Motor upper 255SL – Jabsco 18753-0458
  • J65-221          Motor 135/146/lower 255SL – Jabsco 18753-0350
  • J65-229          Motor & pinion kit horiz CP lights – Jabsco 43990-0079
  • J65-230          Motor/pinion kit Vert all CP lights – Jabsco 43990-0078
  • J65-231          Motor clutch assy 5″ CP lights – Jabsco 43990-0075
  • J65-232          Motor clutch assy 7″&8″ lights – Jabsco 43990-0076
  • J65-233          Clutch/gear kit CP lights – Jabsco 43990-0069
  • J65-234          Drive gear CP lights – Jabsco 43933-0000
  • J65-235          Gear & clutch

Models 62022-4-Series 62040-4 Series Jabsco 60020-135sl-remote-control-searchlight-technical-data-sheet

Additional information

Weight 3.5 kg
Dimensions 35 × 30 × 25 cm
