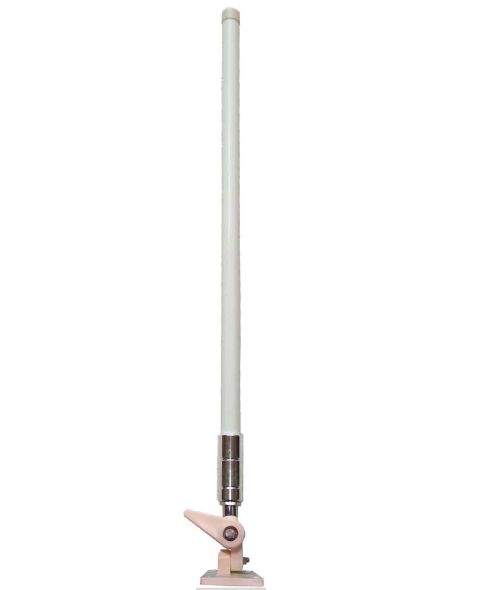

Blackhawk Omni High Gain 7/10dBi Marine Quality Antenna
Specifically designed for use in Marine, Boat, Caravan, Camptrailer, Motorhome and RV
698-960/1710-2700 Mhz, 7/10dBi
Suits 3G/4G - All Mobile Carriers
An antenna perfect for low to high signal areas that is compatible with all mobile carriers. The wide range of dbi gain from 7-10, this antenna is suitable for both data and voice applications. The Blackhawk Omni Marine High Gain antenna is designed for versatility, for use in a variety of environments, in low to high signal areas and can withstand being mounted in a marine environment. The Blackhawk Omni will operate with all mobile carriers. With 7-10 dBi and supporting all bands, this antenna is hard to beat and will provide the perfect solution for voice and data applications where a high gain antenna is required. Perfect for fixed wireless terminals, mobile broadband internet applications and smart repeater applications.
- Provides a 7dBi gain for 698-960 MHz
- Provides a 10dBi gain for 1710-2700 MHz
The Blackhawk Omni Marine High Gain Antenna is designed for versatility, for use in a variety of environments, in low to high signal areas and mounted in a marine environment. The Blackhawk Omni Marine Antenna will operate with all mobile carriers regardless of the frequency they operate on. With a 7 - 10 dBi gain and supporting all bands, this antenna is hard to beat and will provide the perfect solution for voice and data applications where high gain marine antennas are required.
Features:
- Suitable for all mobile carriers
- Comes with a Marine Adjustable White Folding base mount
- Comes with 20cm Cable with N Female connector
- This antenna will require a LMR400 or LMR240 Cable. Please choose from our 'cable sets' for the desired length of cable.
Network Compatibility:
- Telstra 4GX (700MHz)
- Optus 4G+ (700MHz)
- Telstra Next-G™ (850MHz)
- Vodafone 4G+ (850MHz)*
- Vodafone Regional 3G (900MHz)*
- Telstra/Optus/Voda 4G (1800MHz)
- All Carriers - Urban/Metro 3G (2100MHz)
- Optus 4G TDD (2300MHz)
- Telstra 4GX (2600MHz)
Options:
It is important to make the connection from your antenna to your device with the correct cables and connectors to suit your specific device. Below are the accessories you may need to do the job with the least loss giving the best connection.
- LSHF C10-400 NM - 10m Blackhawk Marine Cellular Antenna Extension Cable LMR 400 with N male to N male fittings both ends (Requires Patch lead and adapter to modem)
- LSHF C15-400 NM - 15m Blackhawk Marine Cellular Antenna Extension Cable LMR 400 with N male to N male fittings both ends (Requires Patch lead and adapter to modem)
- LMR400 cable can be ordered for any specific length - please ask one of our staff to custom a cable for your application.
- CON-NFMEFF - N Female - FME Female Adaptor (From antenna extension cable to patch lead)
- Patch Leads - These antenna patch cables allow you to connect a mobile phone/data device to a booster or external antenna for improved reception. One end of the adapter cable connects to the phone via a port in the rear or a slip on cradle, and the other end terminates to an FME Male Connector. Most of the patch leads will be unique to the phone/data device model, please let us know your devices manufacturer and the model.
We offer patch leads for the following brands of phones and data cards: Alcatel Apple Audiovox BenQ BlackBerry Boost Bosch Dopod Ericsson Garmin Hiptop Hitachi HP HTC Huawei Hyundai I-Kids I-mate iBurst Kyocera LG Magellan Maxon Mio Mitsubishi Motorola Navigon NEC Netcomm Nokia Nortel Novatel Wireless o2 Option Optus PalmOne Panasonic Philips Qualcomm Road Angel Sagem Samsung Sharp Shinco Siemens Sierra Wireless Sony Sony Ericsson Technophone Telstra Three Unwired Virgin Vodafone 3G Voxson Voxtrack ZTE
