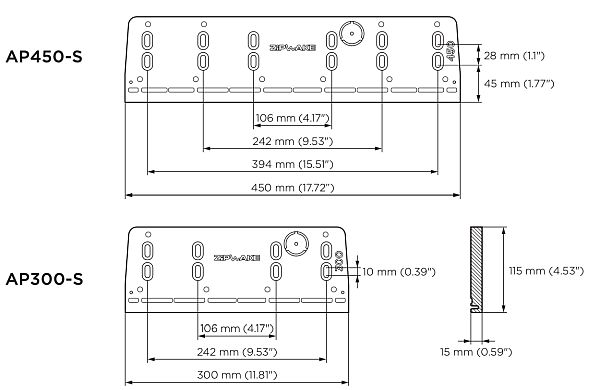

Zipwake AP300-S Adaptor Plate Kit 2 x 300mm (Series S only) 0582025
Suits 300mm interceptors and reduces Transom preparations when upgrading from BTS interceptors

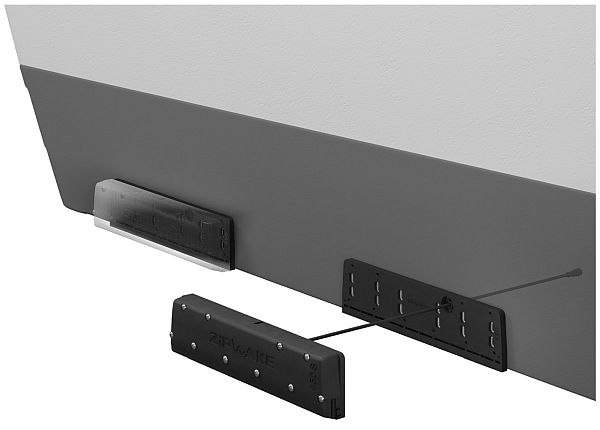

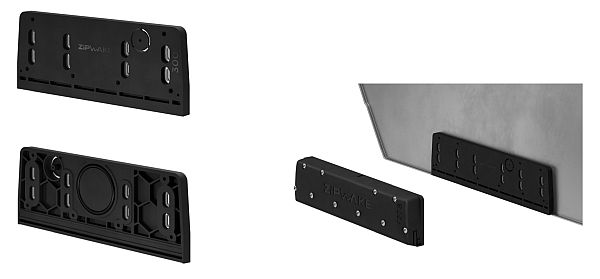

Zipwake Adaptor Plates are designed to minimize transom preparations required for upgrading to Zipwake Series S on boats already equipped with BTS interceptors and/or which have transoms with protruding bottom plates. The adaptor plates allow reuse of the existing screw hole pattern and they seal the previous holes for thru-hull fittings. Because the Adaptor Plates perfectly match the mounting holes, installation of the Zipwake Series S interceptors is completely straightforward. All that is needed on the transom are the new holes for the Zipwake thru-hull fittings
Interceptors vs TrimTabs:
- MORE EFFICIENT LIFT -Near full beam interceptor arrangements are much more efficient at making lift compared to trim tabs with narrow span.
- LESS DRAG -Zipwake’s interceptor blade extends just 30 mm, whereas trim tabs often project 150 mm reflecting substantial drag.
- 5 TIMES FASTER ACTUATION -Zipwake’s blade stroke takes 1.5 seconds, outperforming conventional trim tabs by at least a factor of 5.
- LESS WAKE -Interceptors provide more effective trim control creating less waves which directly leads to better fuel economy.
Straight Interceptors (Sold Each):
- 0582100 – IT300-S – 1 x 300mm Straight Interceptor + 3m cable (2011232)
- 0582105 – IT450-S – 1 x 450mm Straight Interceptor + 3m cable (2011233)
- 0582110 – IT600-S – 1 x 600mm Straight Interceptor + 3m cable (2011234)
- 0582115 – IT750-S – 1 x 750mm Straight Interceptor + 3m cable (2011235)
- Centre V-Shaped Interceptor:
- 0582120 – IT450-S V13 – Centre Interceptor (450mm Wide x 13º Deadrise) + 3m cable (2011482)
- 0582125 – IT450-S V16 – Centre Interceptor (450mm Wide x 16º Deadrise) + 3m cable (2011483)
- 0582130 – IT450-S V19 – Centre Interceptor (450mm Wide x 19º Deadrise) + 3m cable (2011484)
- 0582135 – IT450-S V22 – Centre Interceptor (450mm Wide x 22º Deadrise) + 3m cable (2011485)
- 0582001 – Flybridge Control Panel – Up to 3 panels possible (2011238)
- 0582150 – External GPS – The Zipwake’s standard Control Panel has a built-in internal GPS. When this is located inside the vessel and cannot receive a clear signal, it is recommended to install an external GPS receiver. The GPS signal provides accurate vessel position and speed; necessary input for the Zipwake’s automatic motion controller (2011240)
