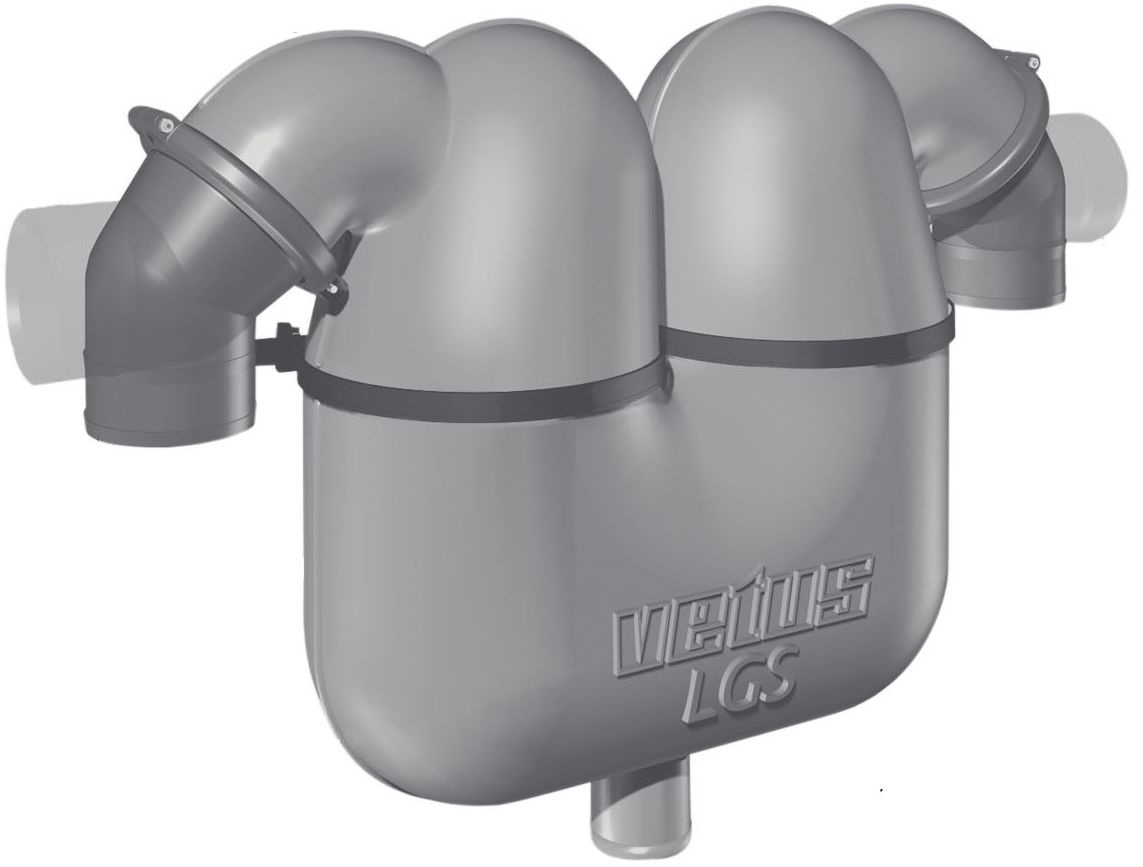

VETUS Gas-Water Separator for Marine Engines and Generator Sets
75mm Rotating Connections - 50mm Drain (LGS7550)
Generator sets and marine diesel engines often produce disturbing, gurgling exhaust noises. The VETUS gas/water separator type LGS offers the ultimate solution, because it separates the injected raw cooling water from the exhaust gases. In addition, the LGS gas/water separator provides excellent sound attenuation and functions as a gooseneck as well. Models LGS 60/75 are supplied with hose connectors for 60 or 75 mm hose, which can rotate through 360°. They have a capacity of 12 litres and a cooling water drain of 50 mm diameter.
A stainless steel (AISI 316) mounting bracket with synthetic straps is supplied as standard with all models.

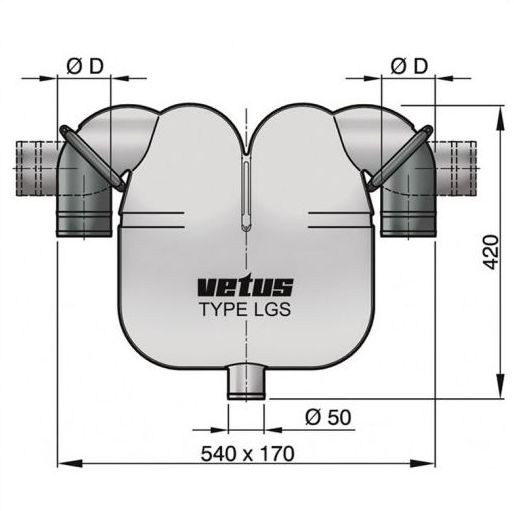

Models LGS 60/75 - 50mm Drain
Options:
- LGS4038 - 40mm Rotating Connections - 38mm Drain
- LGS4538 - 45mm Rotating Connections - 38mm Drain
- LGS5038 - 50mm Rotating Connections - 38mm Drain
- LGS6050 - 60mm Rotating Connections - 50mm Drain
- LGS7550 - 75mm Rotating Connections - 50mm Drain
