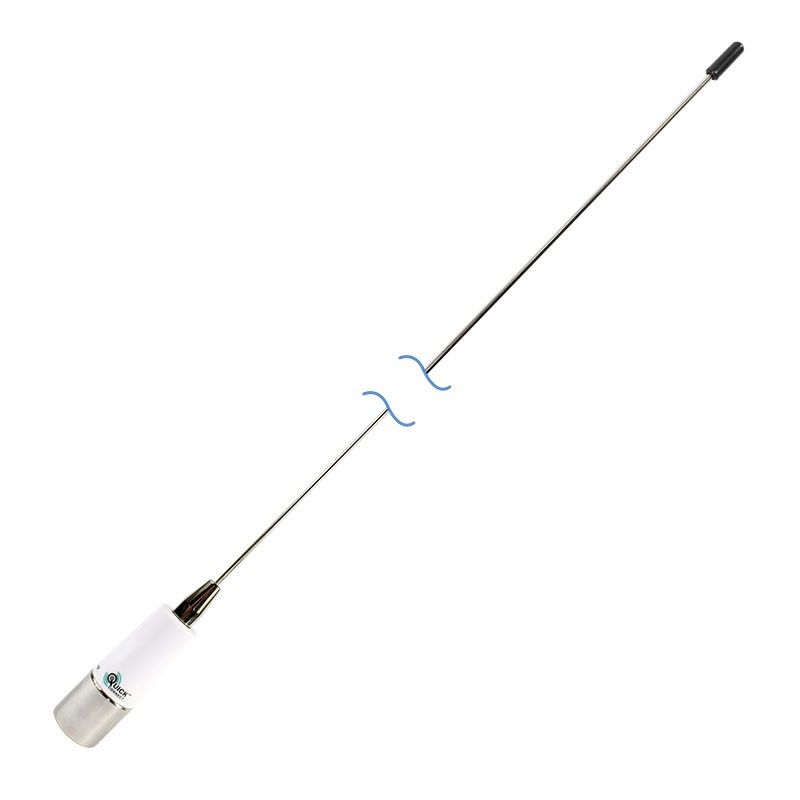

Shakespeare QuickConnect 0.9m VHF Antenna (119322) QC-3
Easy Remove and Replace - 3dB Gain
Suits VHF Marine Band (Performance ** Star)
(NB: Mounting Base Not Included)
Stemming from the popularity of the quick connecting feature on Shakespeare’s high-end Phase III® marine antennas, the new QuickConnect™ product line brings you the ease of connecting and disconnecting your marine antenna in a series of entry-level antennas. All QuickConnect™ aerials must be used with a QuickConnect™ base. All bases come with a 4.5m (15ft) cable.
Why 2 ½ Stars?
Although all QuickConnect™ antennas are made with the quality materials, our Classic antennas perform slightly better. The benefit with QuickConnect™ antennas is convenience of installation and removal.
Features
- 0.9m VHF Marine Band, 6dB
- QuickConnect™ system, screw or unscrew antenna to disconnect or connect
- High quality connection so that no noise is generated due to vibrations
- Splash protection cap to protect the connector on the mount when antenna is disconnected
- Centerpin® PL-259 Connector is an easy crimp-on type connector
- Standard mount design to easily upgrade to a high-end Shakespeare antenna without purchasing a new mount
- 50-ohm impedance
- White fibreglass
- Chrome plated brass ferrule
- 2 year limited warranty
Other Mounting Options and Accessories:
- Aerial Mount - Short Post - Stainless Steel - 1" x 14TPI (119112)
- Shakespeare Ratchet Mount - Nylon - 4 Way Action with Fast Release (119350) 4186
- Shakespeare Lift-N-Lay Antenna Mount - Polycarbonate - Snaps into Vertical Position (119364) 495-B
- Shakespeare Rail Mount - Nylon - Slot in Thread for Cable Feed - Suits 22-25mm Dia. Rails 119360 (SP4722)
- Shakespeare Rail Mount - Nylon Ratchet - Lever Action for Quick and Easy Stowage - Suits 22-25mm Dia. Rails (119358) 4721
- Shakespeare Ratchet Mount - Stainless Steel - 4 Way Action with Fast Release - Slot for Cable Feed (119352) 4187
- Shakespeare Centrepin Connector - Solderless PL-259-CP-G suits RG-8X or RG-58/AU VHF Coax Cable (119398)
- Shakespeare Coaxial VHF Cable - 15.2m Length x RG-8X Low Loss Cable - 50 Ohm Impedance - White (119380)
- Shakespeare Manual Coaxial Switch - Use Two Radios with One VHF Aerial or Two VHF Antennas with One Radio (SP-CS2)
- Shakespeare Marine Band Separator - Suits AM/FM/VHF - Incl. - 3m x RG-62 AM/FM Cable and 0.9m x RG-58 VHF Cable and Connectors (119330) SP3004
