Scanstrut ATMOS Integrated Built-In Air Station – 12V 12A – Max 20 PSI/1.37 BAR – IPX6 Waterproof (117500)

Sale!
Scanstrut ATMOS Integrated Built-In Air Station - 12V 12A - Max 20 PSI/1.37 BAR - IPX6 Waterproof (117500)
Scanstrut ATMOS Integrated Built-In Air Station - 12V 12A - Max 20 PSI/1.37 BAR - IPX6 Waterproof (117500) - Image 2
Scanstrut ATMOS Integrated Built-In Air Station - 12V 12A - Max 20 PSI/1.37 BAR - IPX6 Waterproof (117500) - Image 3

Original price was: $1,289.00.Current price is: $985.00.

Scanstrut ATMOS Integrated Built-In Air Station - Inflates/Deflates Towables, SUP and Platforms

Scanstrut ATMOS Integrated Built-In Air Station (117500)

12V 12A – Max 20 PSI/1.37 BAR – IPX6 Waterproof

Inflates/Deflates Towables, SUP and Platforms

Revolutionize your boating experience.

Our in-built air station is here to maximize quality time on the water.

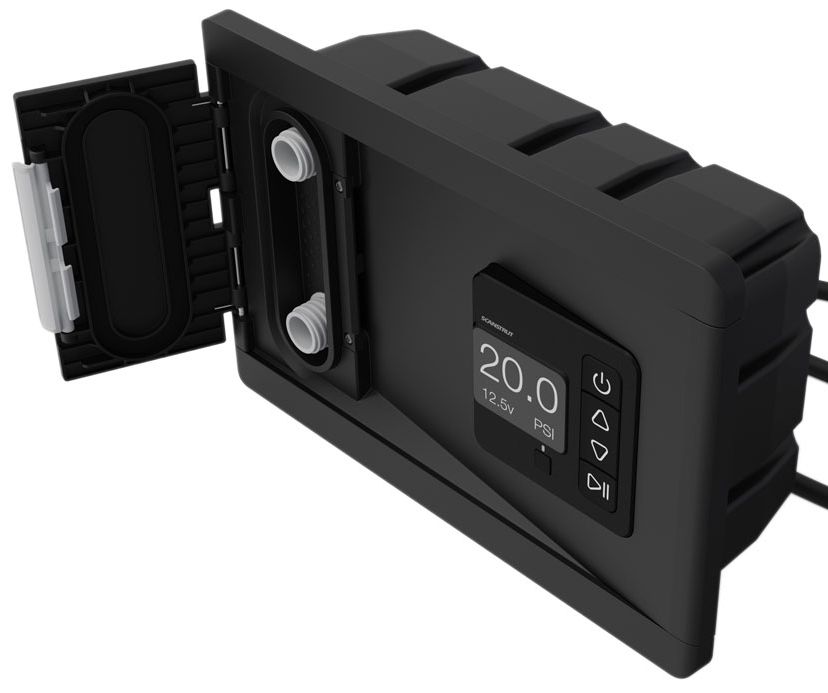

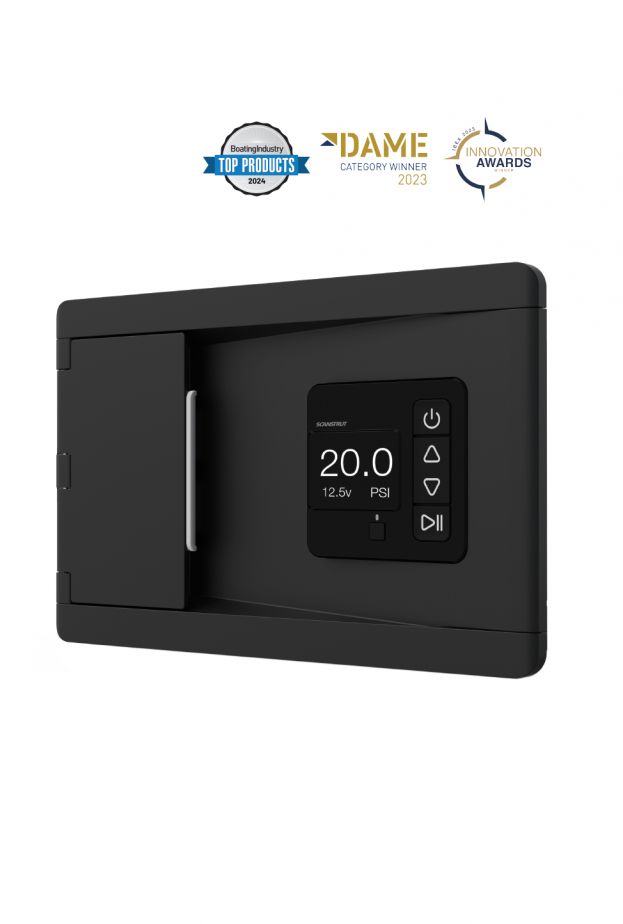

ATMOS, by Scanstrut, will revolutionize your family’s boating experience. This beautifully designed, in-built air station is here to maximize quality time on the water.

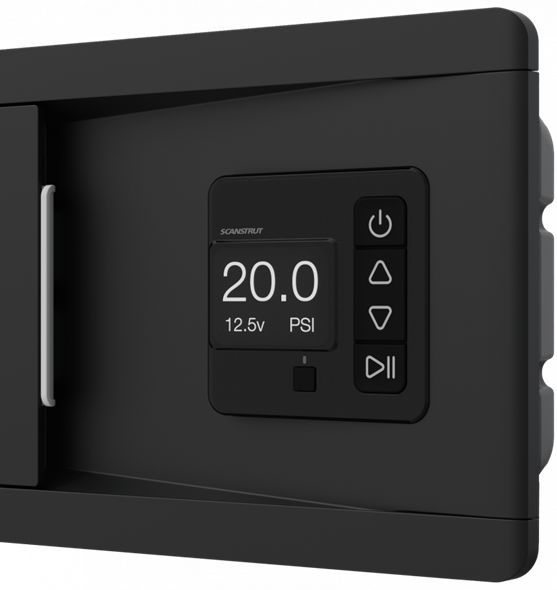

At the push of a button, ATMOS is ready to inflate your paddleboards, towables and more: simply set the target pressure and let ATMOS do all the hard work.

Utilizing Scanstrut’s outdoor technology DNA, this is waterproof on-board air that’s engineered to thrive in the harsh marine environment.

Installation:

  • How: Panel mounted using self-tapping screws or bolts (not included), foam gasket included.
  • Installation angle: + 10º to – 30º from vertical
  • Service: No end-user serviceable parts
  • Where: Fit into a wide variety of locations on board: seating, side panels or consoles. Min cavity depth 110mm (4.33”)
  • Ignition Protection – ISO 8846 and SAE J1171. ATMOS SC-AOB-A2 has successfully undergone all required tests and complies with the rigorous standard for Ignition Protection. This certification signifies that ATMOS can be safely installed in any location on a boat or vehicle.

The Stats

  • Environmental protection: Conformal coated electronics and PCB
  • Brushless Technology: Featuring high performance brushless motors designed for the marine environment.
  • Protection: Reverse polarity, short-circuit, under voltage, overload, over temp.
  • Certifications: CE, ROHS, UN ECE R10, UKCA
  • Cable length: 500mm (20”) 1.5mm2 16 AWG
  • Waterproof rating: IPX6 front and rear (door closed)
  • Air flow: In and out of front of unit only. Rear of unit sealed

Safety

  • Max run time: 25 minutes (3 SUPs)
  • Under protection: Soft motor start
  • Standby mode: No activity auto shut off – 5 mins
  • Max pressure output: 20 PSI / 1.4 BAR
  • Warranty: 2 Year warranty
  • Auto shut-off: At target pressure
  • Ambient operating temp: -20º to +50 ºC
  • Ignition Protection: ATMOS SC-AOB-A2 meets the ISO 8846 and SAE J1171 test standard for Ignition Protection.

Downloads

Technical information

  • Waterproof rating: IPX6 waterproof front and back
  • Input voltage: 12V Battery system (10-14V)
  • Max Pressure output: 20 PSI / 1.37 BAR
  • Max current draw: 12A (140W)
  • Standby current draw: 0.02W Max
  • Two-stage pump
    • Stage 1 = 0 -1 PSI
    • Stage 2 = 1.1 – 20 PSI
  • Max volume of airflow 0-1 PSI: 350 LPM/12.3 CFM
  • Max volume of airflow 1-20 PSI: 70 LPM/2.5 CFM
  • Standby power draw: 0.02W Max
