Scanstrut – Antenna and Light Mount CENTRAL WING PLATE – Suits All PowerTowers – APT-LB-GPS2 (106316)

Scanstrut – Antenna and Light Mount CENTRAL WING PLATE – APT-LB-GPS2 (106316)

Suits All PowerTowers – Designed for 2 x Antenna and 1 x Navlight

Designed for  2x Antenna and 1x Navlight – Central light bar for all aft leaning PowerTowers.

• Paint finishes complies with our unique 4 step marine paint system
• Fits a wide range of Navlights
• Internal cable routing into the PowerTower
• No drilling required. The central bar fits to PowerTower using pre-drilled, tapped internally mounted 316 stainless backing plates
• Fit single or multiple antennas.

Suits:

Hella

• NaviLED 360 Pro
• 2984 Series

Aquasignal

• Series 40
• Series 25

Perko

• 0200 Series
• 0455 / 0466 Series

Downloads:

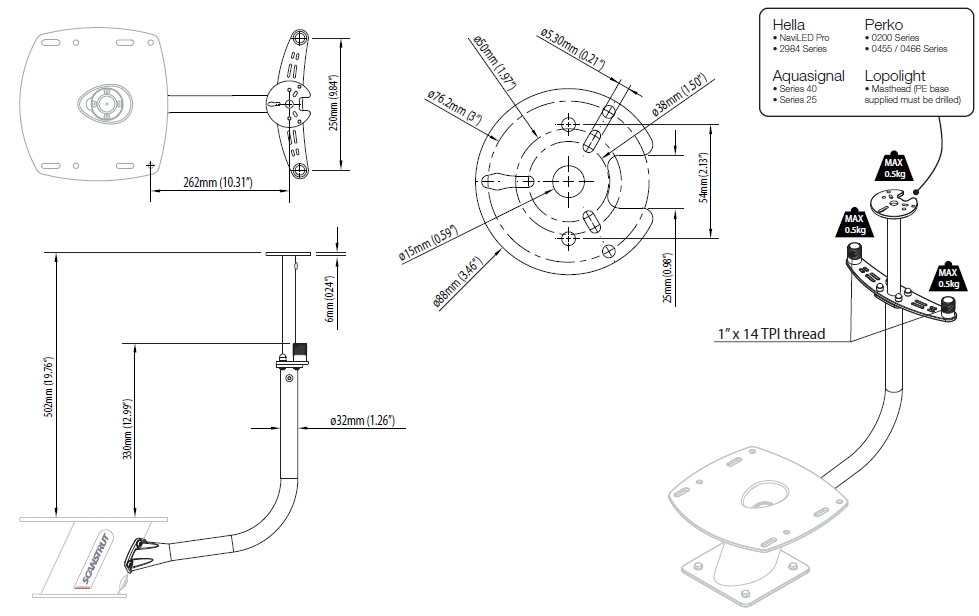

• <APT-LB-GPS2 Technical Drawing
• <APT-LB-GPS2 Installation Instructions
