Isotherm Replacement AC-DC Electronic Control Unit (SEG00030GA)
We deliver Australia wide – Ask us for a quote!!

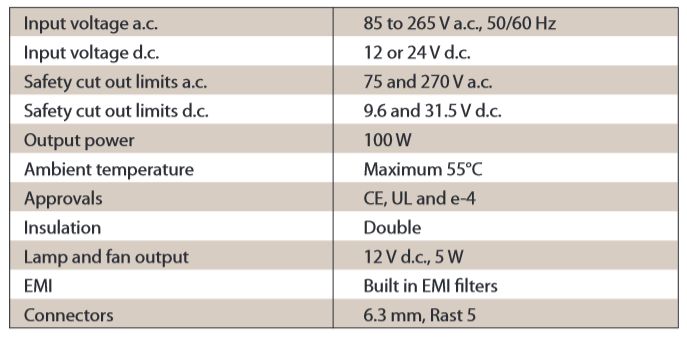

Danfoss Part 101N0510 is a optional electronic unit for the BD35F and BD50F compressors. The unit has a built in AC/DC converter. The AC voltage range is from 85 VAC up to 265 VAC, 50 /60 Hz.
The DC voltage range is from 9.6 to 31.5 Volt DC. The unit is therefore a true global voltage supply version. Automatic detection of supply voltage which means no additional relay is required to shift between AC or DC. As accessory a small mounting plate will be offered which makes it possible to mount the electronic unit separately from the compressor. As an additional feature a 12Volt DC, 5 Watt lamp output has been introduced.
- 101N0510 (direct replacement for 101N0500)
- 4 3/4″ w  X 4 3/4″ h X  2″d
- Indel  Part #SEG00030GA
