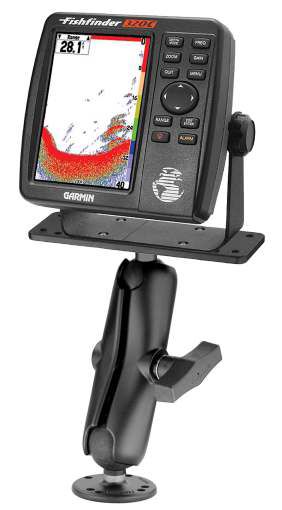

Ram Marine Electronics Mounting Bracket – Heavy Duty Long Arm (220mm) Suits 9 – 12 Inch For Chart or Depth Sounder Display Units RAM D-111U (109020)

Ram Marine Electronics Mounting Bracket - Heavy Duty Long Arm (220mm) Suits 9 - 12 Inch For Chart or Depth Sounder Display Units RAM D-111U (109020)
Ram Marine Electronics Mounting Bracket - Heavy Duty Long Arm (220mm) Suits 9 - 12 Inch For Chart or Depth Sounder Display Units RAM D-111U (109020) - Image 2
Ram Marine Electronics Mounting Bracket - Heavy Duty Long Arm (220mm) Suits 9 - 12 Inch For Chart or Depth Sounder Display Units RAM D-111U (109020) - Image 3
Ram Marine Electronics Mounting Bracket - Heavy Duty Long Arm (220mm) Suits 9 - 12 Inch For Chart or Depth Sounder Display Units RAM D-111U (109020) - Image 4

$392.00

Mounting Bracket - 94mm Round Mounting Base - 57mm Swivel Ball - 220mm Arm - 280 x 75mm Top Plate

Lowrance Touch-Touchscreen and Simrad Display Mounting Bracket  (RAM D-111U)

Suits Lowrance HDS9, HDS10, HDS12 Touch and  Simrad NSS7, NSS8, NSS12

94mm Round Mounting Base - 57mm Swivel Balls - 220mm Arm - 280 x 75mm Top Plate

The RAM-D-111U consists of a 3.68" diameter round base, STANDARD length double socket arm and 11" x 3" rectangular plate. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The rectangle plate contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.


In certain applications additional holes may need to be drilled for proper fit with your electronic device.

Suits:

  • Garmin GPSMAP 1222/xsv Touch
  • Garmin GPSMAP 1242xsv/Touch
  • Lowrance HDS Carbon 9
  • Lowrance Elite-9 CHIRP
  • Lowrance Elite-9 Ti²
  • Lowrance HDS LIVE 9
  • Lowrance HOOK-9
  • Lowrance HDS LIVE 12
  • Lowrance Elite-12 Ti
  • Lowrance Elite-12 Ti²
  • Garmin Fishfinders and GPS Chartplotters
  • Humminbird Fishfinders and GPS Chartplotters
  • Lowrance Fishfinders and GPS Chartplotters
  • Raymarine Fishfinders and GPS Chartplotters

Material:
Powder Coated Marine Grade Aluminum

Ball Size:
2.25" Rubber "D" Ball Size

Note:
The "U" in the part number reflects product packaged in poly bag. The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

Weight:
4.47 lbs.

Weight 2.1 kg
Dimensions 11 × 22 × 38 cm
