Quick Horizontal Anchor Winch – Genius GP2-2000 – 800W 12 Volt Motor – Suits Most Boats up to 10m (Rope and Chain Gypsy Combo) (FSGU10000008A04)

Quick Horizontal Anchor Winch - Genius GP2-2000 - 800W 12 Volt Motor - Suits Most Boats up to 10m (Rope and Chain Gypsy Combo) (FSGU10000008A04)

$2,532.00

Quick Horizontal Anchor Winch - Genius GP2-2000 - Gypsy 8mm Chain

Quick Horizontal Genius GP2-2000 Anchor Winch  800W Motor (FSG1000008A04)

8mm SL Chain and 14mm Rope Combo

Suits  Most Boats up to 13 Metres

Overview:
Quicks appropriately named Genius series of horizontal windlass are the epitome of Italian elegance and ingenuity working in perfect synergy. Robust inner workings and a tough chrome plated bronze gypsy are encased within a sleek anodised housing making them as aesthetically pleasing as they are functional.

Features:

  • Completely above deck mount
  • IP66 Watertight
  • Anodised alloy housing reduces corrosion
  • Integral chain pipe
  • Sensor included for use with optional digital chain counters
  • Deck thickness: 20-40 mm (25/32"-1" 9/16)

Includes:

  • Clutch release handle
  • Dual direction solenoid pack
  • Remote up/down panel switch
  • Isolator/circuit breaker panel

Optional :

  • Digital chain counters (sensor installed as standard feature)
  • Foot switches

Standard version

GP2 2000 / D - GP2 2000 FF

Motor power

800 W

Motor supply voltage

12 V

24 V

Maximum pull

900 Kg / 1984 lb

Maximum working load

350 Kg / 772 lb

Working load

120 Kg / 265 lb

Current absorption @ working load (1)

96 A

50 A

Maximum chain speed (2)

29,6 m/min / 97.1 ft/min

Maximum chain speed @ working load (2)

20 m/min
65.6 ft/min

20,1 m/min
65.9 ft/min

Weight without drum

10,2 Kg / 22.4 lb

Weight with drum

11,5 Kg / 25.3 lb

Weight with FF

10,9 Kg / 24 lb

1)

After an initial period of use

2)

Measurements taken with a gypsy for a 8 mm chain

Weight 12 kg

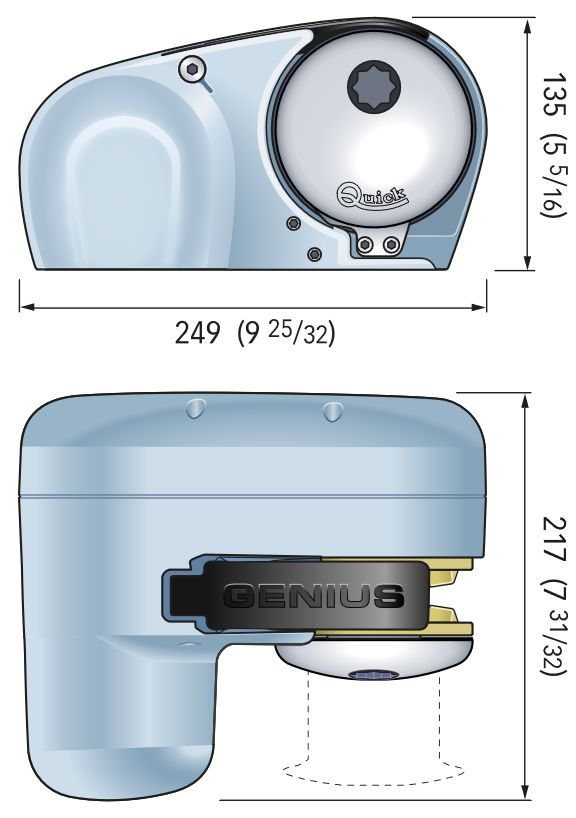

Dimensions 30 × 27 × 19 cm
