Isotherm CR130 S/S INOX Clean Touch Stainless Steel Fridge/Freezer – 12 or 24 Volt – 124L Fridge with 6L Freezer – Reversible Door Hinge – 381715 (C130RNEIT11111AA)

Sale!
Isotherm CR130 S/S INOX Clean Touch Stainless Steel Fridge/Freezer - 12 or 24 Volt - 124L Fridge with 6L Freezer - Reversible Door Hinge - 381715 (C130RNEIT11111AA)
Isotherm CR130 S/S INOX Clean Touch Stainless Steel Fridge/Freezer - 12 or 24 Volt - 124L Fridge with 6L Freezer - Reversible Door Hinge - 381715 (C130RNEIT11111AA) - Image 2
Isotherm CR130 S/S INOX Clean Touch Stainless Steel Fridge/Freezer - 12 or 24 Volt - 124L Fridge with 6L Freezer - Reversible Door Hinge - 381715 (C130RNEIT11111AA) - Image 3

Original price was: $3,469.00.Current price is: $2,895.00.

*** LIMITED STOCK *** Isotherm Cruise 130 Litre INOX Clean Touch Fridge/Freezer - 124L Fridge with 6L Freezer - Left or Right Hand Door Hinge

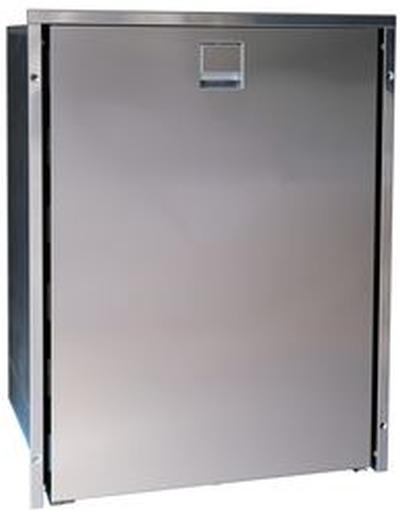

Isotherm CR130 Inox Clean Touch Stainless Steel Fridge/Freezer  – C130RNEIT11111AA

12 or 24 Volt – 124L Fridge with 6L Freezer

Dimensions: 750 H x 545 W x 555 D (mm)

Changeable Left or Right Hand Door Hinge with 3 sides Inox flush mounting frame standard

Suitable for Boats-Caravans-Motorhomes and RVs

We ship Australia wide – Ask us for a quote!

Isotherm Cruise 130 Inox Stainless Steel Refrigerator with an overall volume of 130L. These 12 volt – 24 volt flush mounted cabinet style refrigerators with stainless steel doors & trims, are well suited for the marine environment as well as Caravans, Motorhomes and RVs,

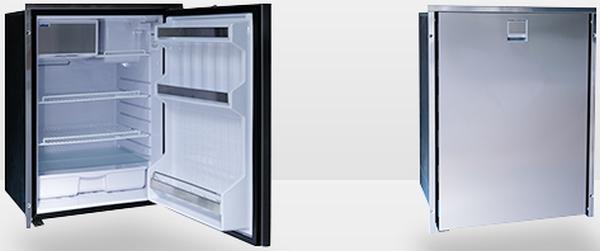

The Isotherm CR130 is a traditional fridge three shelves and a vegetable bin. The door has three shelves and it is equipped with an inner light and a fan cooled compressor.

Features:

  • Volume: 130L (Inc 6L Freezer)
  • Reversible Door Hinge
  • Food preparation compliant stainless steel case
  • 3 sides Inox flush mounting frame standard
  • The handle, flush mounted and centrally located, allows easy switch of the hinge opening side
  • Silent, high efficient, fan cooled 12/24V Danfoss / Secop compressor (type BD35F)
  • New evaporator / freezer: covers made by injection parts, evaporator doors in stainless steel
  • Adjustable shelves
  • Internal White LED light
  • Low voltage cut off
  • Radio interference suppression
  • Internal rotary thermostat
  • Utilises R134A ozone friendly refrigeration gas
Type Cruise 130 (Inox) CT
Volume (l)

130
Dimensions H x W x D (mm) 750 x 545 x 555
Power consumption (W/24h) 418
Weight (kg) 23,1

Other Cruise 130 Options Available:

  • 1130BA1AA – Cruise 130L Drink Grey Line DC Only RH Hinge Position (381752)
  • 1130BA7AA – Cruise 130L Drink Grey Line AC/DC Module RH Hinge Position
  • 1130BA7BA – Cruise 130L Drink Grey Line AC/DC Module LH Hinge Position
  • 1130BA1MK – Cruise 130L Drink With 3-Side Flush Mounting Frame DC Only RH Hinge Position
  • 1130BA1NK – Cruise 130L Drink With 3-Side Flush Mounting Frame DC Only LH Hinge Position
  • 1130BA7MK – Cruise 130L Drink Inox With 3-Side Flush Mounting Frame AC/DC Only RH Hinge Position
  • 1130BA7NK – Cruise 130L Drink Inox With 3-Side Flush Mounting Frame AC/DC Only LH Hinge Position
  • 1130BB1AA – Cruise 130L Grey Line DC Only RH Hinge Position (381750)
  • 1130BB1BA – Cruise 130L Grey Line DC Only LH Hinge Position
  • 1130BB7AA – Cruise 130L Grey Line AC/DC RH Hinge Position
  • 1130BB1MK – Cruise 130L Inox With 3-Side Flush Mounting Frame DC Only RH Hinge Position (381713)
  • 1130BB1NK – Cruise 130L Inox With 3-Side Flush Mounting Frame DC Only LH Hinge Position (381712)
  • 1130BB7MK – Cruise 130L Inox With 3-Side Flush Mounting Frame AC/DC Only RH Hinge Position
  • 1130BB7NK – Cruise 130L Inox With 3-Side Flush Mounting Frame AC/DC Only LH Hinge Position

Dimensions:

Ventilation:
It is very important that the compressor/condenser unit is well ventilated and that cold air can enter at the bottom, pass behind the fridge and warm air can leave at the top in the area where it is mounted. The natural flow of air from below and upwards behind the fridge can be increased by arranging  ventilation openings at the rear. Make sure there is a free area of 15 – 23 sq.in. below and behind the refrigerator to allow ventilation air to pass behind from below. (see diagram below).

Battery Voltage (Shut Down) Sensor:
To protect the batteries from becoming completely discharged, a battery voltage sensor switches off the compressor automatically at the following levels:

Electrical Connections:
When connecting the refrigerator electrically, it is important that following points are considered:
Always use cables of sufficient area. The area in the following table should be regarded as a minimum. * Always connect the refrigerator directly to the battery or to the battery main switch on the plus circuit. Do not connect it via the boats own control panel or other diversions as this can cause a voltage drop in the power supply. Use the included fuse holder with a 15A fuse. Use 7.5A fuse in a 24 volt system. The fuse shall be mounted on the plus cable.
*Connect the red cable to the positive (+) terminal and the black to the negative (-) terminal. Use tab type terminals for the connection to the electronic unit and other cable connectors of sufficient size for the cable size selected. * Do not connect the refrigerator direct to a battery charger. The battery charger must be connected to the battery.

Wire Dimensions:
The correct wire gauge  and type must be used.

Weight 40 kg
Dimensions 120 × 80 × 97 cm
