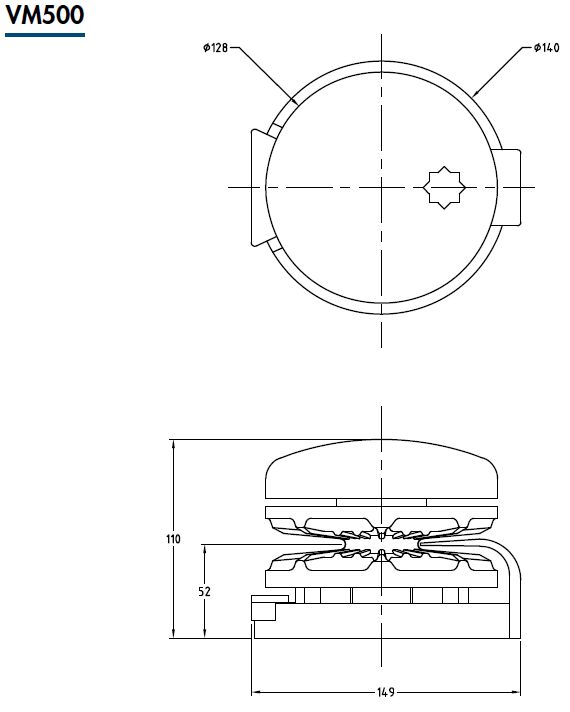

Muir VM500 Manual Low Profile Vertical Anchor Winch (VM500)
316 Stainless Steel and Chrome Bronze
Suits 6, 8 or 10mm SL Chain Only
Not everyone needs or wants power, so the Manual Vertical series is designed with those in mind. Suited for vessels up to 12m, the manual vertical series has many applications and the above deck installation is fast and simple. The manual series is available in a round base configuration (VM500). Featuring an independent low profile top or capstan and gypsy the units can also be mounted horizontally in the anchor locker, or used as an auxillary unit for line hauling or fishing use.
The low profile, light weight, compact design make this unit ideal for the racing enthusiast who cannot afford the weight or space of a powered windlass, or for those doing serious ocean cruising or racing who can’t afford to rely on battery power. Available to suit all chain or rope chain combination (RCMS optional). The heavy duty knurled capstan operates independently of the gypsy and provides increased line grip. Precision engineered for quick and efficient hauling, the ratchet manual operation system is operated with a standard sheet winch handle and manually released with the same handle.
Features:
- Chain only
- Gypsy with low profile clutch top arrangement (VM)
- Round base model (VM)
- 316 Stainless Steel / Chrome Bronze
- Independent gypsy and capstan operation
- Capstan models feature heavy duty knurled finish for increased grip
- Cone clutch/brake
- Stainless steel mounting bolts supplied
- Clutch release and manual operation handle
- Installation/Operation booklet
Accessories:
- Muir Deck Switch with Black Trim Ring and Flip Cover (F80-DSBLK)
- Muir Deck Switch with White Flip Cover and Trim Ring (F80-DSWHT)
- Muir Switches, Panels and Circuit Breakers
- Muir Reversing Solenoids
- Muir Hand Held Remote Controllers (Wired and Wireless)
- Muir Chain and Rode Counters (Wired and Wireless)
