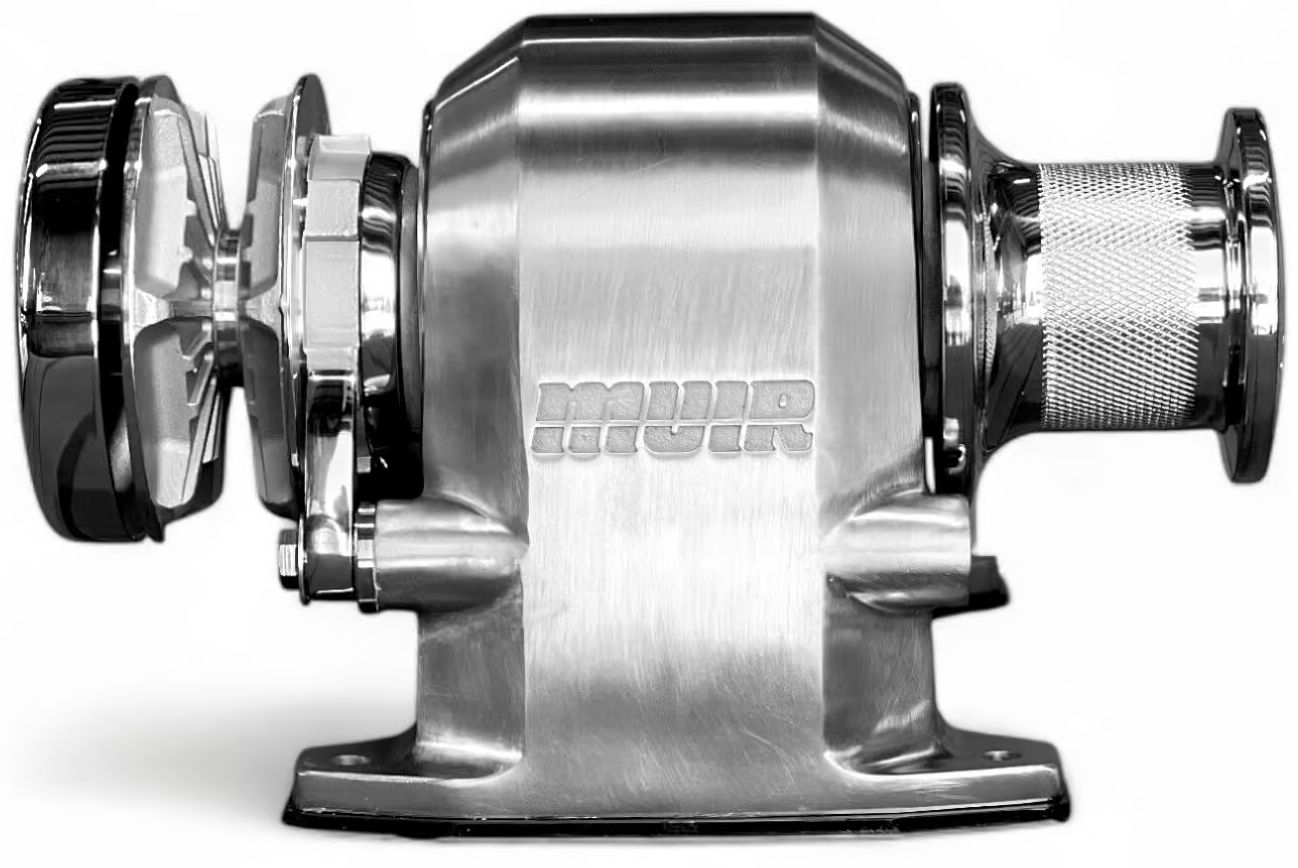

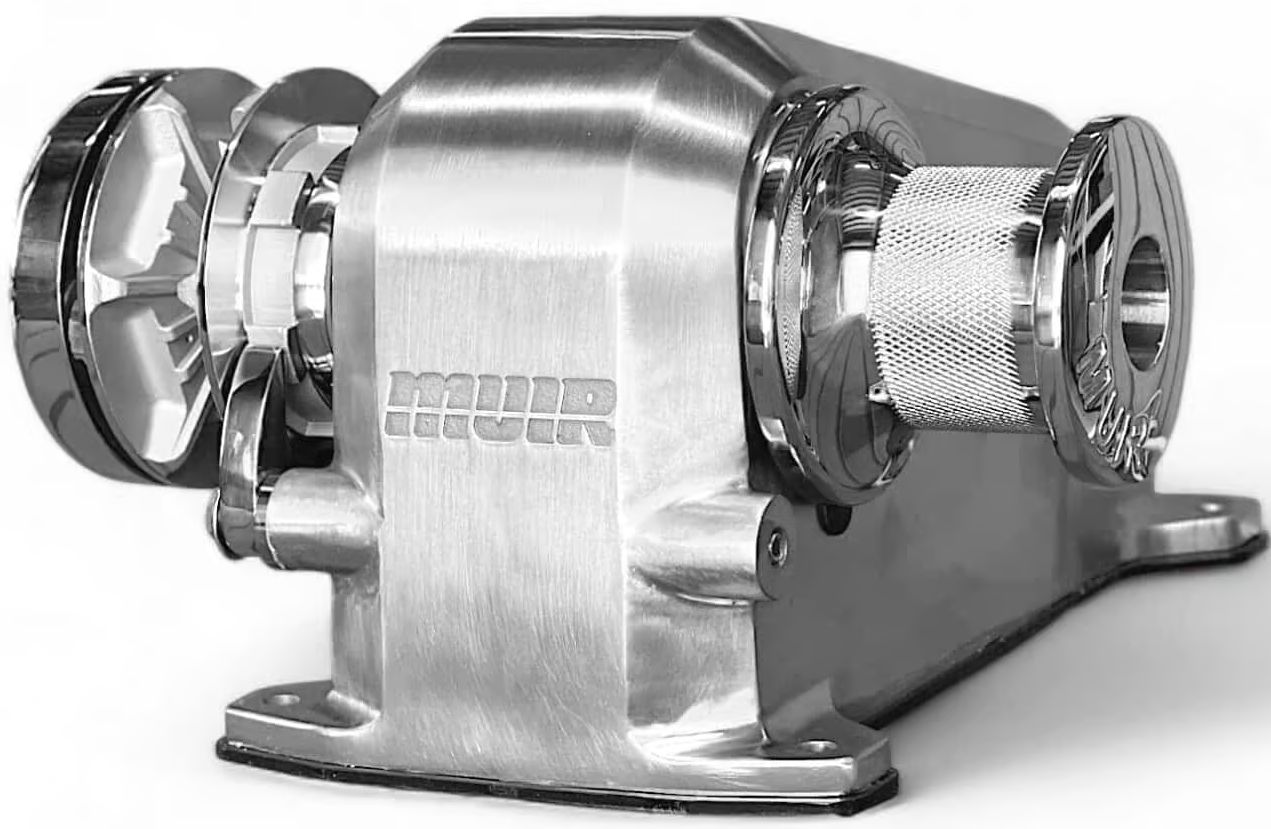

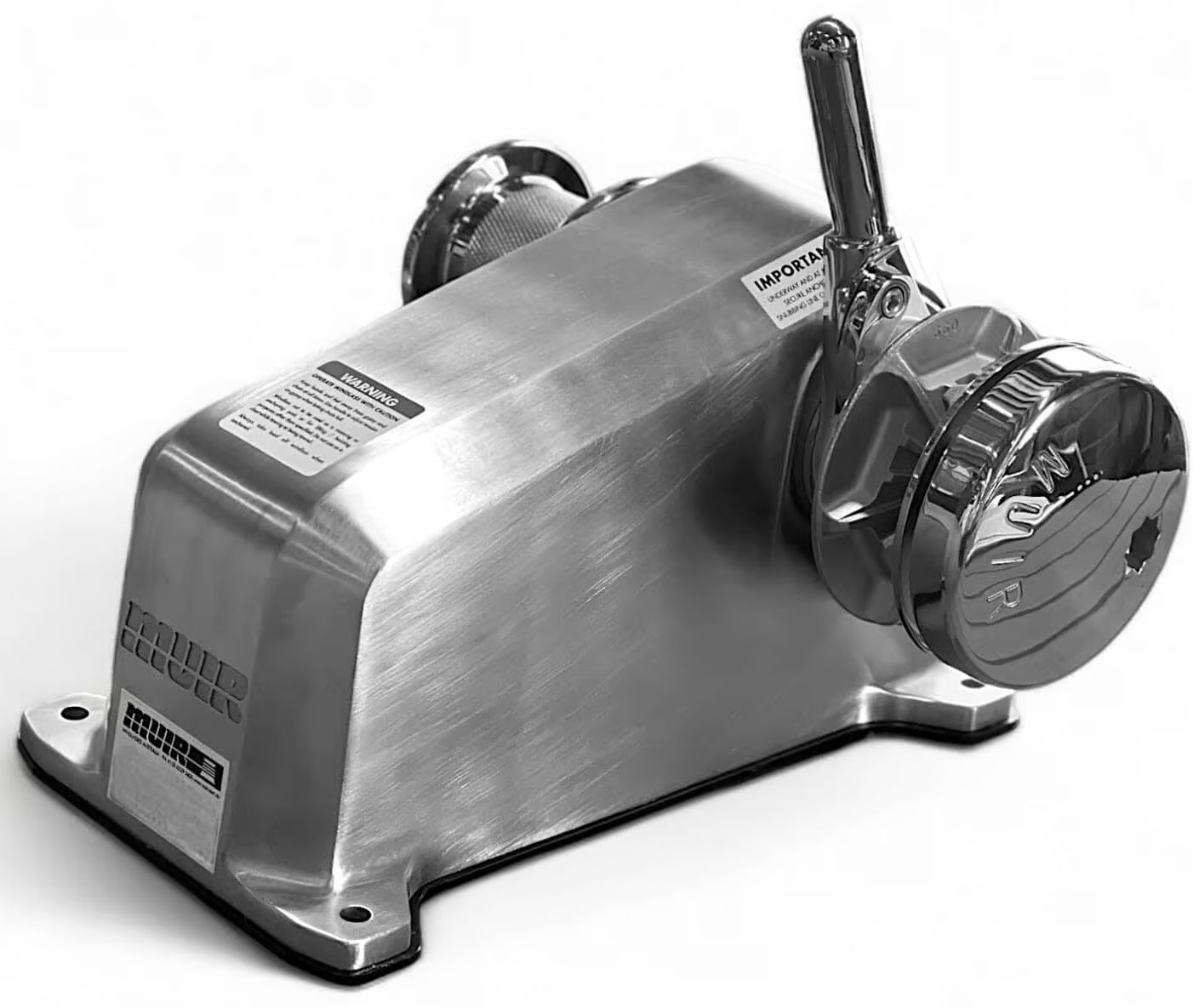

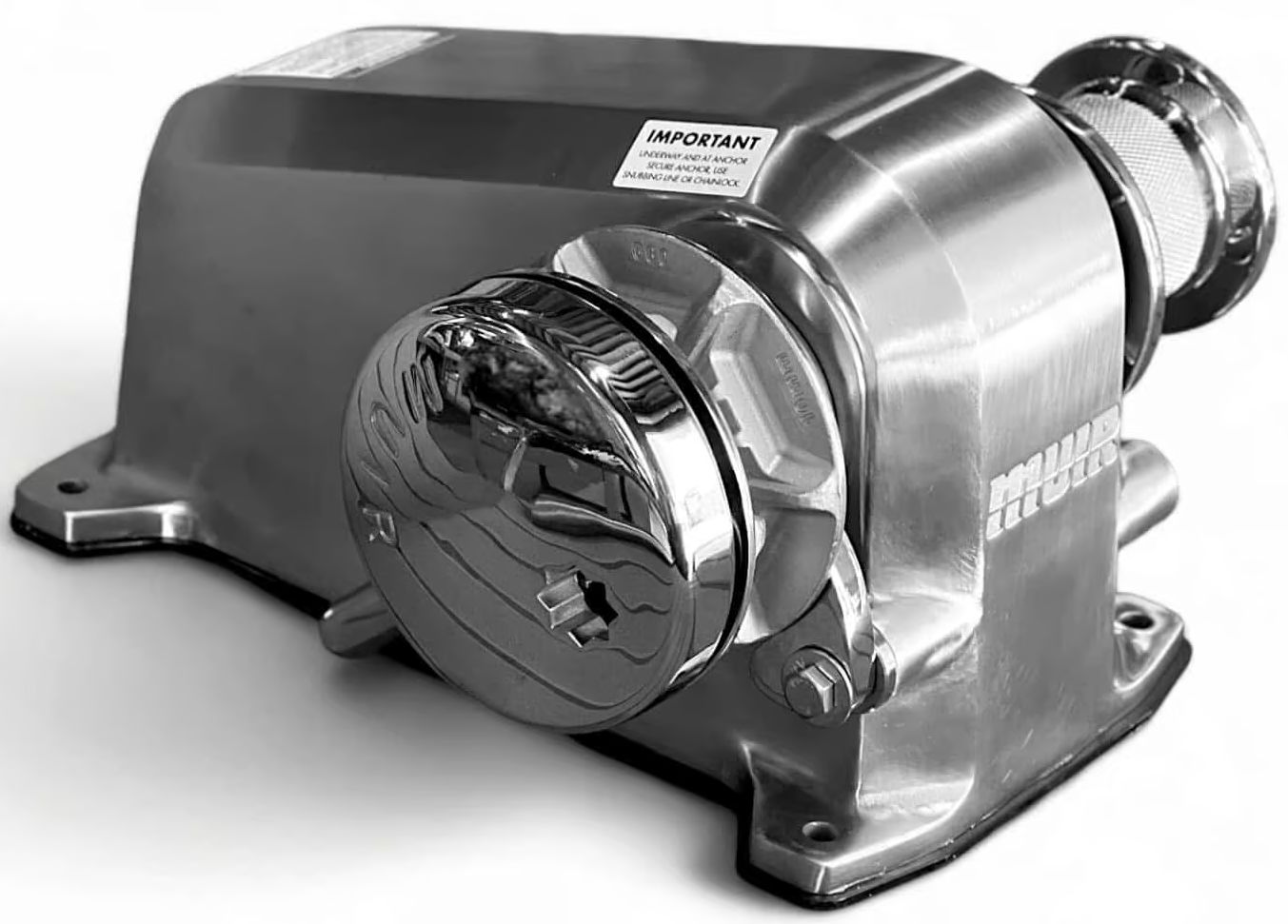

Muir Cougar HR1600 Brushed Stainless Steel Compact Horizontal Anchor Winch (F061223)
12V 1200W Motor – Suits 8mm SL Chain and 14mm Rope
New Stainless Steel Housing
Suits Most Boats up to 13 Metres (43 feet)
Discover the MUIR HR1600 Stainless windlass – a high-performance horizontal anchor winch designed for strength, durability, and smooth operation. Built from premium marine-grade stainless steel, the HR1600 is ideal for medium to large vessels, offering reliable anchoring power, corrosion resistance, and long-lasting performance at sea.
Features:
- Made in Tasmania, Australia
- Gypsy for Rope & Chain Combination or Gypsy for Chain Only
- Manual Override System (MORS)
- Heavy Duty Dual Direction Motor 12 & 24V DC
- New durable and low-maintenance brushed 316 Stainless Steel housing
- Fully enclosed motor & gearbox
- Independent gypsy and capstan operation
- High Tensile Stainless steel drive shaft
- Chain pipe and peeler
- Cone clutch/brake
- Shaft seal
- Clutch release handle
- Installation/Operation booklet
- 3 Year Limited Warranty
Includes:
- Heavy duty marine grade, dual direction motor – 12V or 24V DC (Please specify)
- Gypsy – gypsy suits both rope and chain
- Deck switch & circuit breaker
- Cone Clutch/Brake Release Handle
- Operating manual and template for an easy installation.
- Shaft Dia: 25mm
Other Muir Compact COUGAR HR1600 Horizontal Winches:
- Muir Cougar HR1600 Compact Horizontal Anchor Winch – 12V 1000W Motor – Suits 8mm SL Chain and 14mm Rope
- Muir Cougar HR1600 Compact Horizontal Anchor Winch – 24V 1000W Motor – Suits 8mm SL Chain and 14mm Rope
- Muir Cougar HR1600 Compact Horizontal Anchor Winch – 12V 1000W Motor – Suits 10mm SL Chain and 16mm Rope
- Muir Cougar HR1600 Compact Horizontal Anchor Winch – 24V 1000W Motor – Suits 10mm SL Chain and 16mm Rope
Options:
- Muir Deck Switch with Black Trim Ring and Flip Cover (F80-DSBLK)
- Muir Deck Switch with White Flip Cover and Trim Ring (F80-DSWHT)
- Muir Deck Switch with Chromed Trim Ring – No Cover (F80-DSCHR)
- Muir Switches, Panels and Circuit Breakers
- Muir Reversing Solenoids
- Muir Hand Held Remote Controllers (Wired and Wireless)
- Muir Chain and Rode Counters (Wired and Wireless)
