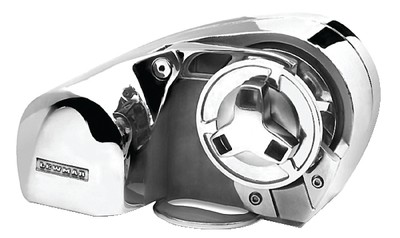

Pro-Series 700 Horizontal Windlass (154380)
Gypsy Suits 6-7mm SL Chain and 12mmm Nylon Rope Combo
Suits Most Boats up to 12 Metres (38')
Praised around the world by boaters and professionals alike, the horizontal Pro-Series 700 and 1000 windlasses are outstanding examples of Lewmar’s commitment to providing quality products for boats ranging in length from 6m to 11.5m (20-38ft). The range features an external housing manufactured from 100% 316 grade stainless steel creating an incredibly strong and durable anchoring system impervious to the elements. Each winch is supplied as a complete kit ready for installation and includes base gasket, fast mount studs, installation wrench, circuit breaker, dual direction solenoid and panel mount up/down rocker switch. Also included is a combination rope/chain gypsy with the ability to accept 6mm, 7mm (Pro-Series 700), and 8mm (Pro-Series 1000) short link chain together with 12mm (Pro-Series 700), and 14-16mm (Pro-Series 1000) medium lay three strand or eight plait nylon rope. Operation is via a simple push button control and includes a built-in manual emergency recovery system.
Pro-Series Features:
- Watts: 500
- Volts Std: 12
- Chain Std(mm): 6/7
- Rope(mm): 12
- Max Pull(kg): 320
- Work Load(kg): 79
- Max Chain Speed(m/min): 32
- Weight(kg): 8.5
- Boat Size(m): 6-8.5
- Powerful motors for fast line retrieval
- Manual emergency recovery system (shifter required)
- Durable 316 grade stainless steel construction
- Stainless steel control arm and stripper for strength
- Simple above deck installation
- For boats 6 to 11.5m
- Free fall conversion kit available (154398)
Standard Inclusions:
- Isolator/circuit breaker
- Dual direction solenoid pack
- Up/Down dash mounted rocker switch
- Circuit Breaker
- Installation Wrench
- Base Gasket
- Fast Mount Studs
- Rope and chain gypsy
Optional:
- Rope/Chain Kits – Pre-spliced for Smooth Operation
- Lewmar Helm Up/Down Switch Panels and Foot Switches
- Lewmar Solenoids
- Lewmar Chain/Rode Counters
- Hand Held Remotes (all brands)
- Chain Stoppers
- Snubbing Devices
- Emergency handle
- Can I fit a chain counter to my Pro-series?
- Due to the size and construction of the Pro-Series, it is not prepared for the installation of a chain counter. This does not stop the enthusiastic owner having a go, but Lewmar cannot help with the installation or provide recommendations.
Downloads:
<Lewmar Anchor Winches Specifications and Manual
Accessories:
154544 - AA150 Dash Mount Counter - Features LED displayed deployed rode length.
- Audible alarm when anchor is close to docking
- Choice of feet or metres rode measurement
- Install up to 2 units or combine with the AA560
154546 - AA560 Dash Mount Counter - Features a one touch automatic function to deploy or retrieve a set length of anchor rode.
- Docking alarm and pre-set stopping point
- Safety lock reduces unwanted windlass operation
- Logs windlass operating hours for maintenance
154548 - AA710 Hand Held Wireless Counter - Provides complete flexibility in control from the bow or the helm station. LED display shows the length of anchor rode deployed. Wireless operation.
- Full windlass control and chain counting
- Control unit is shockproof, waterproof and will float
154486 - Guarded Rocker Switch
- Water-resistant ignition protected rocker type switch. Raised surround prevents accidental engagement.
- Controls the up/down function of all Lewmar anchor windlass models
- Mount at the helm as the main switch for operation, or second station
154530 - Hand Held Remote Control
- Corded hand remote featuring 3mt pigtail with plug end
- Suitable for most solenoid activated applications
- 12 or 24 volt applications
154536 Hand Held Remote (3 button)
Three button wireless fob allows for up/down operation of any Lewmar windlass.
- Kit includes one wireless fob and receiver
- Up to eight fobs may be used on one receiver
- Fob floats, rated to IP67
- Easy retrofitting to existing application
154538 Hand Held Remote (5 button - Wireless RF)
Five button fob allows control over port/starboard thruster operation and up/down operation of any Lewmar windlass.
- Kit include one wireless fob and receiver
- Up to eight fobs may be used on one receiver
- Fob floats, rated to IP67
- Easy retrofitting to existing application
Lewmar Foot Deck Switches
Lewmar offers a wide range of foot switches for direct control of all Lewmar windlasses and sheet winches.
Models and styles are available in black (154466), grey (154478) or with a stainless steel cover (154470) in either fully covered, open top or open top with directional arrows. The SX range is rated to IP67/5 and all switches are suitable for 12 or 24 volt DC operation.
Lewmar’s extensive range of windlasses are designed to use a common above deck head unit matched to a variety of electric motors along with hydraulic models for larger vessels.
Also available is a wide variety of spare parts and accessories including gypsies designed to accept most types of chain up to 22mm stud link.
