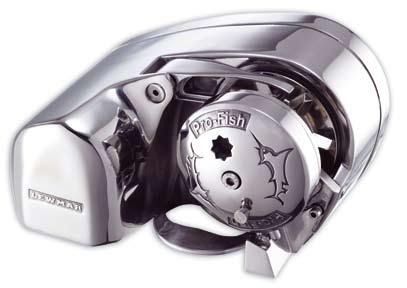

Pro-Fish 1000 Horizontal Windlass (154390)
Gypsy Suits 8mm SL Chain and 14-16mmm Nylon Rope Combo
Suits Most Boats up to 12 Metres (38')
Praised around the world by boaters and professionals alike, the horizontal Pro-Fish 700 and 1000 windlasses are outstanding examples of Lewmar’s commitment to providing quality products for boats ranging in length from 6m to 11.5m (20-38ft). The range features an external housing manufactured from 100% 316 grade stainless steel creating an incredibly strong and durable anchoring system impervious to the elements. Each winch is supplied as a complete kit ready for installation and includes base gasket, fast mount studs, installation wrench, circuit breaker, dual direction solenoid and panel mount up/down rocker switch. Also included is a combination rope/chain gypsy with the ability to accept 6mm, 7mm Pro-Fish 700), and 8mm (Pro-Fish 1000) short link chain together with 12mm (Pro-Fish 700), and 14-16mm (Pro-Fish 1000) medium lay three strand or eight plait nylon rope. Operation is via a simple push button control and includes a built-in manual emergency recovery system.
The Pro-Fish 700 and Pro-Fish 1000 range features an automatic freefall system that allows for instant, accurate deployment of tackle at the touch of a button from the safety of the helm position. When retrieval is necessary the system automatically re-engages.
Pro-Fish Features:The Pro-Fish range features an automatic freefall system that allows for instant, accurate deployment of tackle at the touch of a button from the safety of the helm position. When retrieval is necessary the system quickly re-engages.
- Watts: 700
- Volts Std: 12
- Chain Std (mm): 8
- Rope (mm): 14-16
- Max Pull (kg): 454
- Work Load (kg): 114
- Max. Chain Speed (m/min): 32
- Weight (kg): 9.5
- Boat Size (m): 6-11.5
- Automatic freefall
- Powerful motor providing fast line speed
- Manual emergency recovery equipped all you need is a common 1/2 socket wrench
- Strong 100% 316 stainless steel, including control arm and stripper
- Maximum pulling power: 454kg (1,000 lb)
- Convenient above-deck installation
- 5-year warranty
- For boats up to 12m (38ft)
Standard Inclusions:
- Automatic Free Fall
- Isolator/circuit breaker
- Dual direction solenoid pack
- Up/Down dash mounted rocker switch
- Installation Guide
- Stainless Steel Control arm and stripper
- Wrench
- Base Gasket
- Fast Mount Studs
- Rope and chain gypsy
Optional:
- Rope/Chain Kits – Pre-spliced for Smooth Operation
- Lewmar Helm Up/Down Switch Panels and Foot Switches
- Lewmar Solenoids
- Lewmar Chain/Rode Counters
- Hand Held Remotes (all brands)
- Chain Stoppers
- Snubbing Devices
- Emergency handle
- Can I fit a chain counter to my Pro-series?
- Due to the size and construction of the Pro-Series, it is not prepared for the installation of a chain counter. This does not stop the enthusiastic owner having a go, but Lewmar cannot help with the installation or provide recommendations.
<Lewmar Anchor Winches Specifications and Manual
Accessories:
154544 - AA150 Dash Mount Counter - Features LED displayed deployed rode length.
- Audible alarm when anchor is close to docking
- Choice of feet or metres rode measurement
- Install up to 2 units or combine with the AA560
154546 - AA560 Dash Mount Counter - Features a one touch automatic function to deploy or retrieve a set length of anchor rode.
- Docking alarm and pre-set stopping point
- Safety lock reduces unwanted windlass operation
- Logs windlass operating hours for maintenance
154548 - AA710 Hand Held Wireless Counter - Provides complete flexibility in control from the bow or the helm station. LED display shows the length of anchor rode deployed. Wireless operation.
- Full windlass control and chain counting
- Control unit is shockproof, waterproof and will float
154486 - Guarded Rocker Switch
- Water-resistant ignition protected rocker type switch. Raised surround prevents accidental engagement.
- Controls the up/down function of all Lewmar anchor windlass models
- Mount at the helm as the main switch for operation, or second station
154530 - Hand Held Remote Control
- Corded hand remote featuring 3mt pigtail with plug end
- Suitable for most solenoid activated applications
- 12 or 24 volt applications
154536 Hand Held Remote (3 button)
- Three button wireless fob allows for up/down operation of any Lewmar windlass.
- Kit includes one wireless fob and receiver
- Up to eight fobs may be used on one receiver
- Fob floats, rated to IP67
- Easy retrofitting to existing application
154538 Hand Held Remote (5 button - Wireless RF)
Five button fob allows control over port/starboard thruster operation and up/down operation of any Lewmar windlass.
- Kit include one wireless fob and receiver
- Up to eight fobs may be used on one receiver
- Fob floats, rated to IP67
- Easy retrofitting to existing application
Lewmar Foot Deck Switches
Lewmar offers a wide range of foot switches for direct control of all Lewmar windlasses and sheet winches.
Models and styles are available in black (154466), grey (154478) or with a stainless steel cover (154470) in either fully covered, open top or open top with directional arrows. The SX range is rated to IP67/5 and all switches are suitable for 12 or 24 volt DC operation.
Lewmar’s extensive range of windlasses are designed to use a common above deck head unit matched to a variety of electric motors along with hydraulic models for larger vessels.
Also available is a wide variety of spare parts and accessories including gypsies designed to accept most types of chain up to 22mm stud link.
