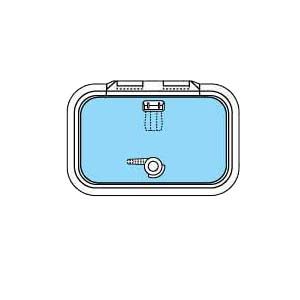

Lewmar Ocean Hatch – Size 20 Flat Base – 342 x 197mm Cut Out – CE Approved (170116)

Sale!
Lewmar Ocean Hatch - Size 20 Flat Base - 342 x 197mm Cut Out - CE Approved (170116)
Lewmar Ocean Hatch - Size 20 Flat Base - 342 x 197mm Cut Out - CE Approved (170116) - Image 2
Lewmar Ocean Hatch - Size 20 Flat Base - 342 x 197mm Cut Out - CE Approved (170116) - Image 3

Original price was: $1,169.00.Current price is: $1,022.00.

Lewmar Ocean Hatch - Size 20 Flat Base - 342 x 197mm - 39620050 (170116)

Lewmar Ocean Hatch - Size 20 Flat Base

342 x 197mm - 39620050 (170116)

With its classic style, the Lewmar Ocean Hatch is fitted to thousands of boats around the world. Its rugged construction provides the ultimate protection against the elements, whatever conditions you might face.

  • All sizes suitable for CE Area 2 (Deck, Coachroof, Cockpit and Transom)
  • Friction levers hold the lid open in any position up to 95°
  • Anodised aluminium frame for corrosion resistance
  • CE Approved

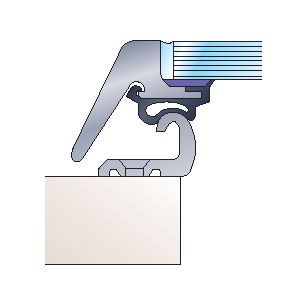

Lower Frame (mm)
Acrylic Colour
Hatch Weight (kg)
Acrylic Window Thickness (mm)
Flat Base
Smoke Grey
2.74
10

Length X (mm)
Width Y (mm)
Height Z (mm)
Radii R (mm)
Hinge Length HX (mm)
Hinge Width HY (mm)
Cut-Out Length Flat X1 (mm)
Cut-Out Width Flat Y1 (mm)
Cut-Out Radii Flat R1 (mm)
266
411
39.5
69
5
225
197
342
34




Weight 3.5 kg
Dimensions 44 × 32 × 8 cm
