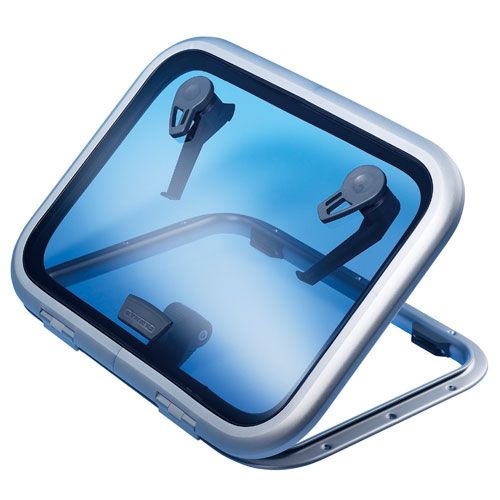

Lewmar Medium Profile Hatch
Size 44 - 442mm x 442mm - 39944020 (170098)
The Medium Profile hatch has identical styling to the Low Profile hatch while providing greater strength as a result of thicker acrylic and deeper frame sections.
This product is ideal on the fore deck of larger offshore yachts.

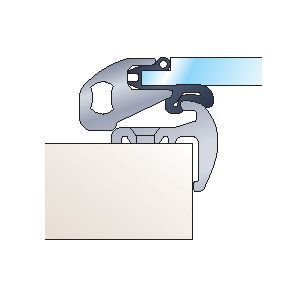

The hatch also features Lewmar’s unique sealing system allowing easy acrylic replacement. All while retaining the smooth, modern lines of the Low Profile Hatch.
- Outside handles allow the hatch to be opened from on deck if it is not locked
- Friction levers hold the lid open in any position up to 95°
- Anodised aluminium frame for corrosion resistance
- Curved upper frame for strength as well as modern styling
- CE Approved
|
Lower Frame (mm)
|
Acrylic Colour
|
Hatch Weight (kg)
|
Acrylic Window Thickness (mm)
|
|---|---|---|---|
|
15
|
Smoke Grey
|
6.4
|
12
|
|
Length X (mm)
|
Width Y (mm)
|
Height Z (mm)
|
Radii R (mm)
|
Cut-Out Length X1 (mm)
|
Cut-Out Width Y1 (mm)
|
Cut-Out Radii R1 (mm)
|
|---|---|---|---|---|---|---|
|
513
|
513
|
32
|
72.5
|
442
|
442
|
42.5
|
