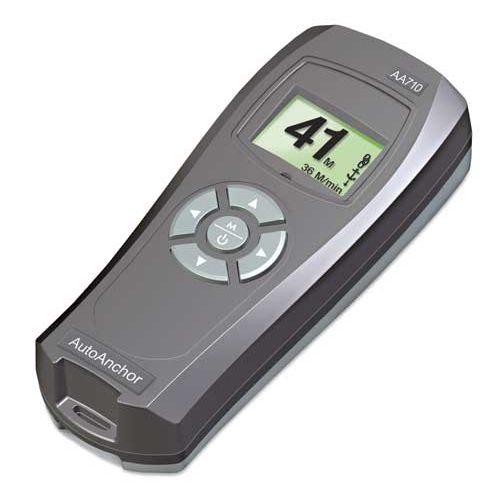

Lewmar AA710 Wireless Roving Controller and Anchor Chain Counter Kit with AA710 Base Wireless Station (154548)
Incl. Sensor and Magnet – Wireless Connection – Suitable for 12V or 24V Systems
The AA710 (AutoAnchor 710) wireless windlass hand control and chain counter provides complete flexibility and control from the helm station or on deck. Clear LED display shows amount of anchor rode deployed while the intuitive buttons allow full windlass and bow thruster control either independently or together plus a built in safety lock prevents unwanted operation.
The plug and play ergonomic hand controller is supplied with console holder and protective cover and is shockproof, waterproof and floats. High level wireless transmission security includes unique ID registration for each unit.
Includes a programmable pre-set length deployment function and auto stop with docking alarm when the anchor is close to full retrieval. Includes log for windlass operating hours and a range of optional measurement settings including feet, metres and fathoms. Suitable for use with 12 or 24 volt DC, AC and hydraulic windlasses and operates in parallel with other control equipment such as panel and foot switches.
Kit includes hand held wireless remote control unit, base station with male sensor plug, grey sensor with two metre cable and plug, magnet and motor load sensor terminators.
Features:
- Full windlass control and chain counting
- Controls bow and stern thrusters independently and together
- Preset the length of rode to deploy
- Auto stop and docking alarm when the anchor is close to docking
- Counts rope/chain or all-chain rode
- Logs windlass operating hours for maintenance
- Easy installation and set up
- Plug and play sensor installation
- Console unit is shockproof, waterproof and will float
- High level wireless transmission security includes unique ID and registration for every unit
- Safety lock reduces unwanted operation
- Ergonomic shape with lanyard connector
- Console holder and protective cover
- Displays signal strength and battery level
- Use with DC, AC and hydraulic windlasses
- Antenna available if wireless communication is impeded
- Operates in parallel with other control equipment eg toggle switches, foot switches and other electronic controllers
Function Options:
A system with one base station (6 outputs) can operate:
- 1 windlass plus a deck wash and deck light or other auxiliary functions
- or 1 windlass and 1 or 2 thrusters
Kit Includes:
- 1 wireless hand held remote control
- 1 base station
- 1 sensor
- 1 magnet
Options:
- 154540 – AA710 Antenna – Increase range beyond 10 Metres (recommended for use on Composite or Metal Boats)
Optional AA710 Antenna
Note: Two base stations can be combined and controlled by one remote to allow control of two windlasses, plus other ancillary equipment.
