Isotherm CR130 DRINK Inox Stainless Steel Matched Drinks Fridge – 12 or 24 Volts – 130 Litre Fridge Only – Left Hand Door Hinge – 1130BA1NK (381710)

Sale!
Isotherm CR130 DRINK Inox Stainless Steel Matched Drinks Fridge - 12 or 24 Volts - 130 Litre Fridge Only - Left Hand Door Hinge - 1130BA1NK (381710)
Isotherm CR130 DRINK Inox Stainless Steel Matched Drinks Fridge - 12 or 24 Volts - 130 Litre Fridge Only - Left Hand Door Hinge - 1130BA1NK (381710) - Image 2

Original price was: $3,239.00.Current price is: $2,868.00.

Isotherm Stainless Steel (Inox) 130 Litre Fridge Only - 12 or 24 Volt DC - Matches CR130 Inox Fridges and CR90F Freezer

Isotherm CR130 DRINK Inox Stainless Steel Matched Fridge (381710) 1130BA1NK

12 or 24 Volts – 130 Litre Fridge Only – Left Hand Door Hinge -Matches Isotherm CR130 Inox Fridges and CR90F Freezer

Suitable for Boats-Caravans-Motorhomes and RVs

We ship Australia wide – Ask us for a quote!

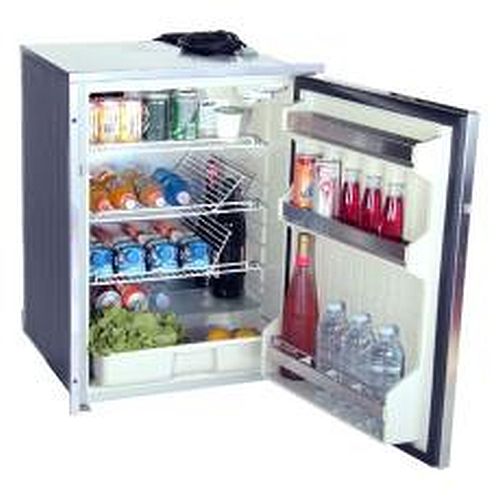

The Isotherm Cruise 130 Drink INOX is a special version of the CR130 providing the customer with an extra space for drinks instead of the freezer. It is equipped with interior light ans fan for cool air distribution inside the fridge  Isotherm Cruise 130 Inox Stainless Steel Refrigerator with an overall volume of 130L.

These 12 volt – 24 volt flush mounted cabinet style refrigerators with stainless steel doors & trims, are well suited for the marine environment as well as Caravans, Motorhomes and RVs.
The Isotherm CR130 is a traditional fridge three shelves and a vegetable bin. The door has three shelves and it is equipped with an inner light and a fan cooled compressor.

Features:

  • Food preparation compliant stainless steel case
  • Flush mounted – no protrusion into galley area
  • Positive, flush closing mechanism
  • Hermetic fan cooled compressor
  • Contoured single piece plastic liner
  • Adjustable shelves Internal light
  • Low voltage cut off
  • Radio interference suppression
  • Internal rotary thermostat
  • Utilises R134A ozone friendly refrigeration gas

Other Inox (SS) Matching Units Available:

Some  Isotherm 130 litre Inox stainless steel  fridges have the same the external dimensions as the Isotherm CR90F Inox Stainless Steel Freezer so it is possible to have a matching fridge and freezer.

  • Isotherm Cruise CR90F Inox Matched 90L SS FREEZER – 90 Litre – DC Only – LH Door Hinge (381714)
  • Isotherm  Cruise 130L Inox SS Fridge AC/DC with 3-Side Flush Mounting Frame RH Hinge –1130BB7MK
  • Isotherm Cruise 130L Inox SS Fridge AC/Dc with 3-Side Flush Mounting Frame  LH Hinge – 1130BB7NK
  • Isotherm Matched Isotherm Cruise CR130 Inox – 130 Litre Drink  Fridge – DC Only – LH Hinge – 3 Shelf – No Freezer (381710)
  • Isotherm Matched Isotherm Cruise CR130 Inox Drink Inox SS Fridge – DC Only 130L Fridge No Freezer – RH Hinge – 3 Shelf  (381711)
  • Isotherm Cruise 130L Inox Drink SS Fridge AC/DC With 3-Side Flush Mounting Frame  RH Hinge – 1130BA7MK –
  • Isotherm Cruise 130L Inox Drink SS Fridge AC/DC With 3-Side Flush Mounting Frame  LH Hinge – 1130BA7NK –

Other Cruise 130L Options Available:

  • 1130BA1AA – Cruise 130L Drink Grey Line DC Only RH Hinge Position (381752)
  • 1130BA7AA – Cruise 130L Drink Grey Line AC/DC Module RH Hinge Position
  • 1130BA7BA – Cruise 130L Drink Grey Line AC/DC Module LH Hinge Position
  • 1130BA1MK – Cruise 130L Drink DC Only With 3-Side Flush Mounting Frame  RH Hinge
  • 1130BA1NK – Cruise 130L Drink DC Only With 3-Side Flush Mounting Frame LH Hinge
  • 1130BA7MK – Cruise 130L Drink Inox SS AC/DC SS With 3-Side Flush Mounting Frame RH Hinge
  • 1130BA7NK – Cruise 130L Drink Inox SS AC/DC With 3-Side Flush Mounting Frame LH Hinge
  • 1130BB1AA – Cruise 130L Grey Line DC Only RH Hinge  (381750)
  • 1130BB1BA – Cruise 130L Grey Line DC Only LH Hinge
  • 1130BB1MK – Cruise 130L Inox SS DC Only With 3-Side Flush Mounting Frame  RH Hinge  (381713)
  • 1130BB1NK – Cruise 130L Inox SS DC Only With 3-Side Flush Mounting Frame  LH Hinge  (381712)
  • 1130BB7MK – Cruise 130L Inox SS AC/DC With 3-Side Flush Mounting Frame RH Hinge
  • 1130BB7NK – Cruise 130L Inox SS AC/DC With 3-Side Flush Mounting Frame LH Hinge

Ventilation:

It is very important that the compressor/condenser unit is well ventilated and that cold air can enter at the bottom, pass behind the fridge and warm air can leave at the top in the area where it is mounted. The natural flow of air from below and upwards behind the fridge can be increased by arranging  ventilation openings at the rear. Make sure there is a free area of 15 – 23 sq.in. below and behind the refrigerator to allow ventilation air to pass behind from below. (see diagram below).

Electrical Connections:

When connecting the refrigerator electrically, it is important that following points are considered:
Always use cables of suffi cient area. The area in the following table should be regarded as a minimum. * Always connect the refrigerator directly to the battery or to the battery main switch on the plus circuit. Do not connect it via the boats own control panel or other diversions as this can cause a voltage drop in the power supply. Use the included fuse holder with a 15A fuse. Use 7.5A fuse in a 24 volt system. The fuse shall be mounted on the plus cable.
*Connect the red cable to the positive (+) terminal and the black to the negative (-) terminal. Use tab type terminals for the connection to the electronic unit and other cable connectors of sufficient size for the cable size selected. * Do not connect the refrigerator direct to a battery charger. The battery charger must be connected to the battery.

Battery Voltage (Shut Down) Sensor:

To protect the batteries from becoming completely discharged, a battery voltage sensor switches off the compressor automatically at the following levels:

Wire Dimensions:
The correct wire gauge  and type must be used.

Weight 34 kg
Dimensions 63 × 61 × 82 cm
