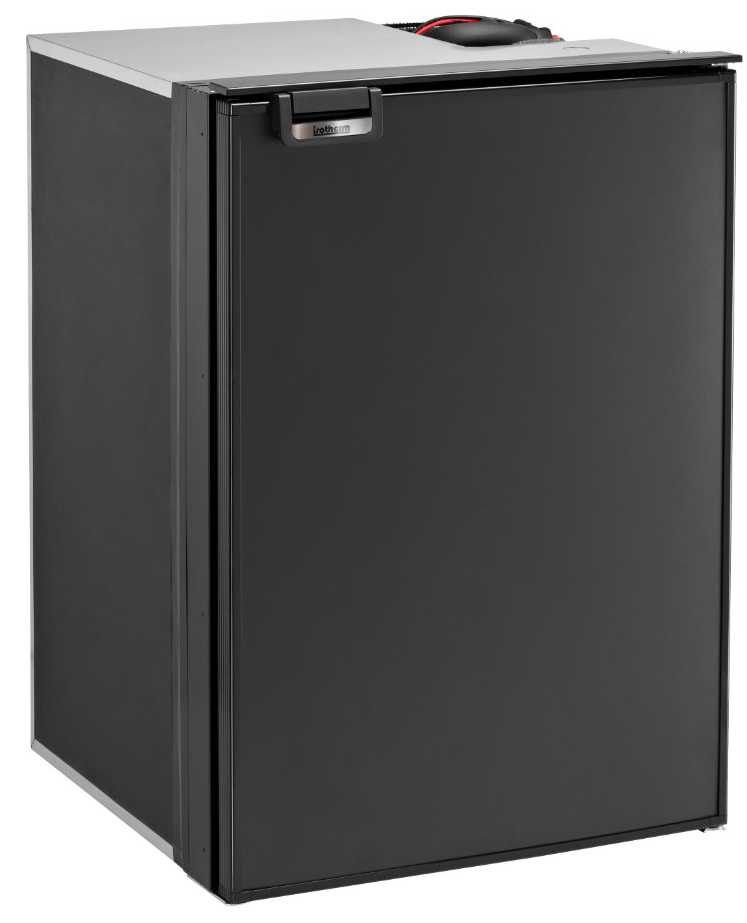

Isotherm CR130 Â DRINK Cruise TOTAL BLACK Drinks Fridge – 12 or 24 Volts – 130 Litre Fridge Only
REVERSIBLE Black Door – 381753 (C130RBATN12111AA)
Suitable for Boats, Caravans, Motorhomes and RVs
We ship Australia wide – Ask us for a quote!

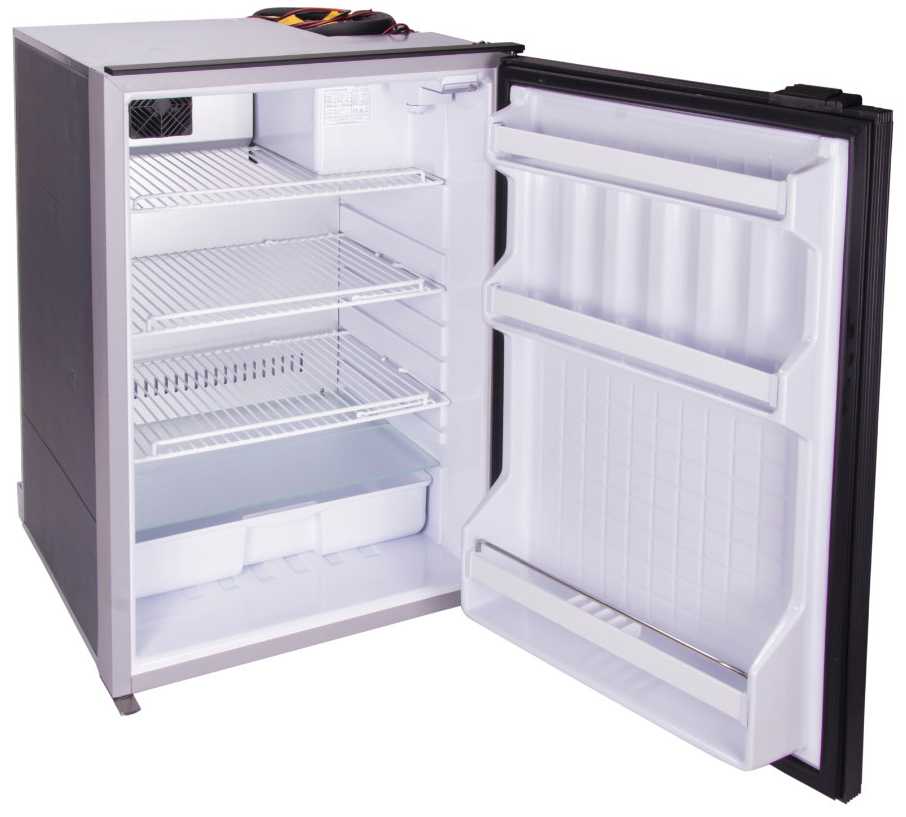

130L refrigerator, ideal space for drinks, equipped with ventilation and internal light. The CRUISE 130 Drink Total Black is a special version of the CRUISE 130 that offers more space for drinks instead of the freezer compartment. It is equipped with an internal light and a fan that promotes the circulation of cold air inside the refrigerator. Wine bottle holders available as an option.
Features:
- Food preparation compliant case
- Flush mounted – no protrusion into galley area
- Positive, flush closing mechanism
- Hermetic fan cooled compressor
- Contoured single piece plastic liner
- Adjustable shelves
- Internal light
- Low voltage cut off
- Radio interference suppression
- Internal rotary thermostat
- Can be operated as 12- 24 Volt DC
Door Hinge:
CR 130 has left or right doors with side mounted door locks and cannot be changed by the customer. The customer needs to purchase or advise whether they want the right hand model or the (different) left hand model.
| Type |
CR 130D |
| Volume (l) |
|
| Dimensions H x W x D (mm) |
750 x 527 x 520 |
| Consumption (kWh/24h) |
0.4 |
| Weight (kg) |
27 |
Matched Units:
Some of the Isotherm 130 litre fridges have the same the external dimensions as the Isotherm CR90F Freezer (the freezer has has more insulation). This is an excellent solution for a side by side fridge-freezer application.
Picture Shows a CR130 Fridge and the Separate Matching CR90L Freezer Unit
(Two Separate Units Mounted Side by Side)
Matching Units Available:
- CR130 – 130L Fridge / 8L Freezer
- CR90F – 90L Freezer Only (same external dimensions with extra insulation for freezer)

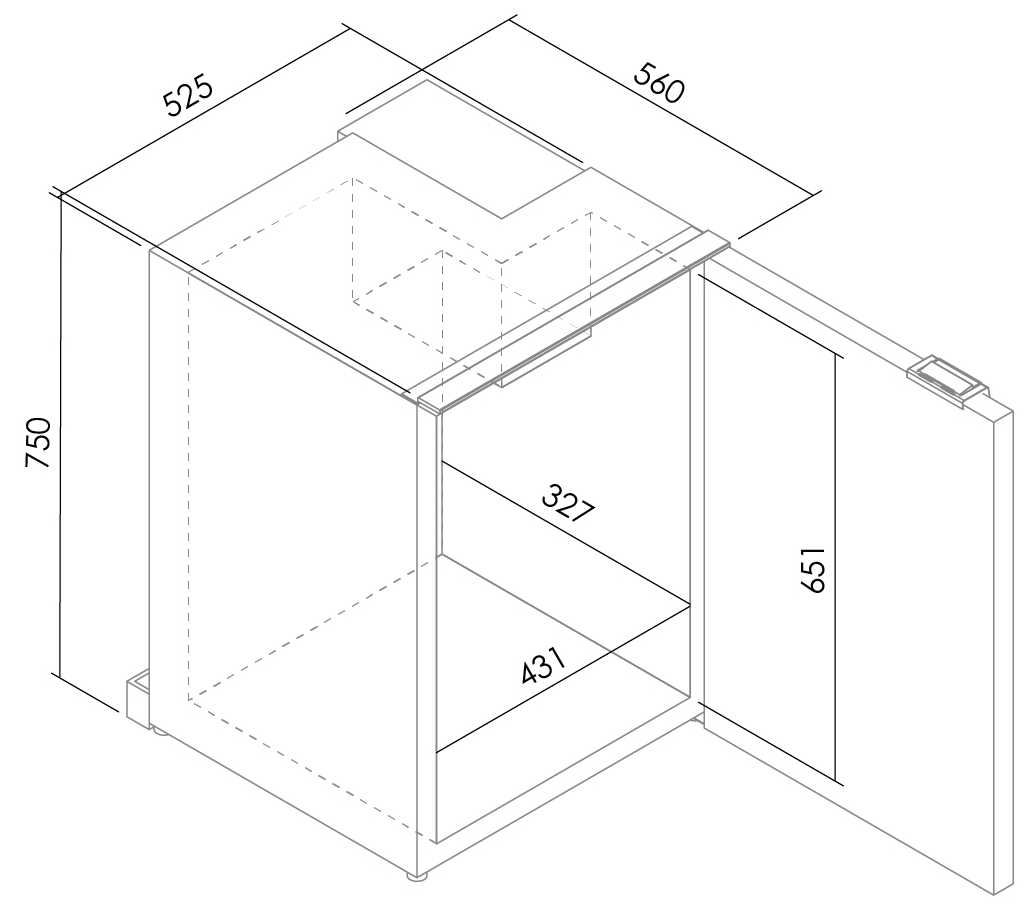

Dimensions:
Ventilation:
It is very important that the compressor/condenser unit is well ventilated and that cold air can enter at the bottom, pass behind the fridge and warm air can leave at the top in the area where it is mounted. The natural flow of air from below and upwards behind the fridge can be increased by arranging ventilation openings at the rear. Make sure there is a free area of 15 – 23 sq.in. below and behind the refrigerator to allow ventilation air to pass behind from below. (see diagram below).
Electrical Connections:
When connecting the refrigerator electrically, it is important that following points are considered:
Always use cables of suffi cient area. The area in the following table should be regarded as a minimum. * Always connect the refrigerator directly to the battery or to the battery main switch on the plus circuit. Do not connect it via the boats own control panel or other diversions as this can cause a voltage drop in the power supply. Use the included fuse holder with a 15A fuse. Use 7.5A fuse in a 24 volt system. The fuse shall be mounted on the plus cable.
*Connect the red cable to the positive (+) terminal and the black to the negative (-) terminal. Use tab type terminals for the connection to the electronic unit and other cable connectors of sufficient size for the cable size selected. * Do not connect the refrigerator direct to a battery charger. The battery charger must be connected to the battery.
Battery Voltage (Shut Down) Sensor:
To protect the batteries from becoming completely discharged, a battery voltage sensor switches off the compressor automatically at the following levels:
Wire Dimensions:
The correct wire gauge and type must be used.
