Isotherm CR130 Cruise Greyline Matched Fridge/Freezer – 12 or 24 Volts – 122L Litre Fridge with 8 Litre Freezer – Changeable Left or Right Hand Grey Door (C130RBABG11111AA)

Sale!
Isotherm CR130 Cruise Greyline Matched Fridge/Freezer - 12 or 24 Volts - 122L Litre Fridge with 8 Litre Freezer - Changeable Left or Right Hand Grey Door (C130RBABG11111AA)
Isotherm CR130 Cruise Greyline Matched Fridge/Freezer - 12 or 24 Volts - 122L Litre Fridge with 8 Litre Freezer - Changeable Left or Right Hand Grey Door (C130RBABG11111AA) - Image 2
Isotherm CR130 Cruise Greyline Matched Fridge/Freezer - 12 or 24 Volts - 122L Litre Fridge with 8 Litre Freezer - Changeable Left or Right Hand Grey Door (C130RBABG11111AA) - Image 3

Original price was: $2,639.00.Current price is: $2,395.00.

Isotherm Cruise 130L Matched Fridge/Freezer - Matches Cruise CR90 Freezer

Isotherm CR130 Cruise Matched Fridge/Freezer (C130RBABG11111AA)

12 or 24 Volts – 122L Litre Fridge with 8 Litre Freezer – Changeable Left or Right Hand Hinge with Grey Door

Suitable for Boats-Caravans-Motorhomes and RVs

We ship Australia wide – Ask us for a quote!

Cruise fridges and freezers have identical external sizing which enables them to be Matched, either side by side or on top of each other. This identical sizing provides the flexibility of combining fridges and or freezers in either left or right hinged configurations to suit any galley lay out. The front door panel facia can be easily changed by the installer to suit individual decor. Supplied standard as right hinged, but easily converted to left hinged if required. Powered by Danfoss compressor unit which accepts either 12 or 24 VDC.

Isotherm Cruise 130 Refrigerator with an overall volume of 130 Litres with 8 Litre freezer.

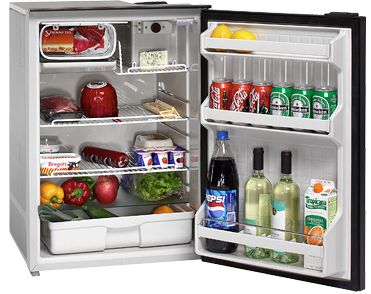

The Isotherm CR130 is a traditional fridge with a freezer compartment, three shelves and a vegetable bin. The door has three shelves and it is equipped with an inner light and a fan cooled compressor.

Features:

  • Food preparation compliant case
  • Flush mounted – no protrusion into galley area
  • Positive, flush closing mechanism
  • Hermetic fan cooled compressor
  • Contoured single piece plastic liner
  • Adjustable shelves
  • Internal light
  • Low voltage cut off
  • Radio interference suppression
  • Internal rotary thermostat
  • Utilises R134A ozone friendly refrigeration gas

Reversible Door Hinge:
The doors on the refrigerators are as standard – mounted with the hinges to the right hand side. The door can be hinged to the left by means of changing position of the upper and lower hinge fittings. The door lock must also be moved to the other side. On the CR 65, 85 & 130 both the upper and lower hinge fittings have to be taken of and mounted on the other side instead. The lower door support is also moved to the other side.

Type CR 130
Volume (l)

130

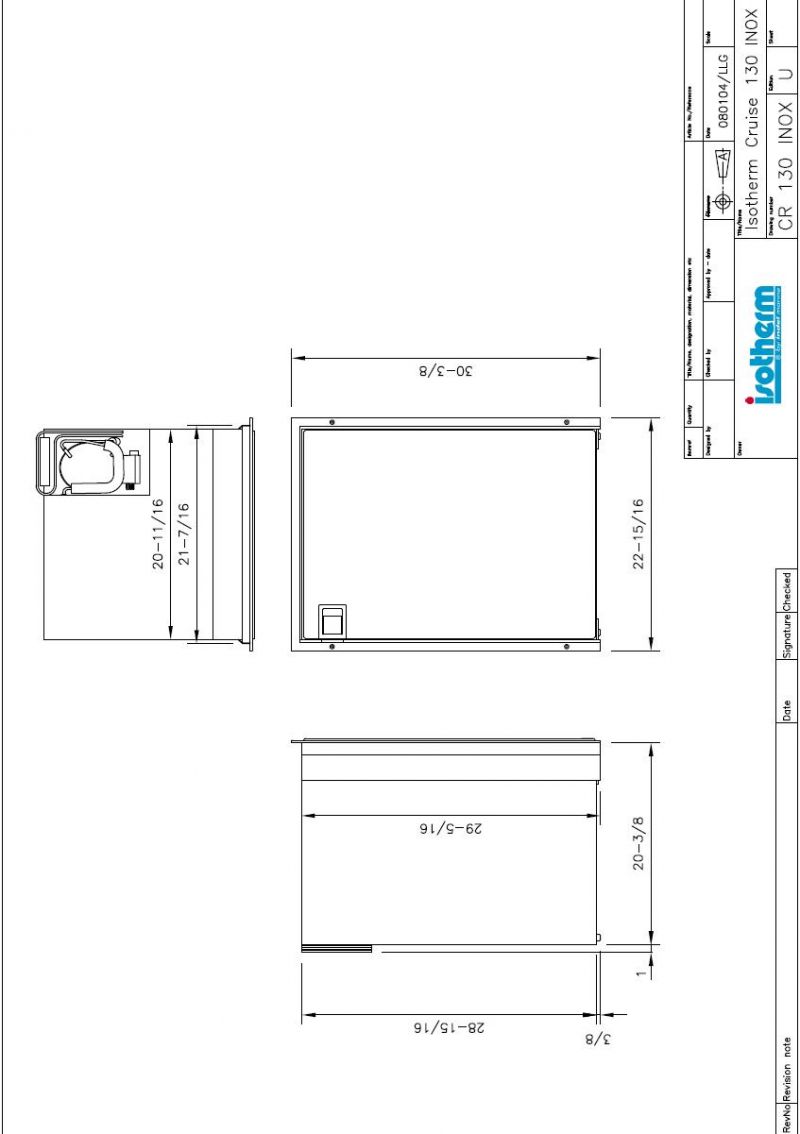

Dimensions H x W x D (mm) 746 x 527 x 505
Power consumption (W/24h) 440
Weight (kg) 27

Options:

  • 381912 – Flush Mount Flange build-in to suit Cruise 90/130
  • 381753 – Bottle Rack to suit 381750 and 381752. Suits 4 bottles – plastic coated wire.

Matched Units:

Some of the Isotherm 130 litre fridges have the same the external dimensions as the Isotherm CR90F Freezer (the freezer has  has more insulation).
This is an excellent solution for a side by side fridge-freezer application.

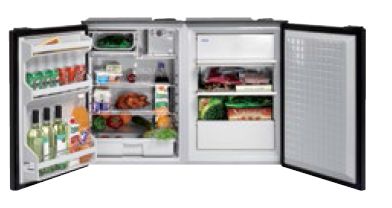

Picture Shows a CR130 Fridge and the Separate Matching CR90L Freezer Unit
(Two Separate Units Mounted Side by Side)

Matching Units Available:

  • 381750 CR130 – 130L Fridge / 8L Freezer
  • 381754 CR90F – 90L Freezer Only (same external dimensions with extra insulation for freezer)

Other Cruise 130 Options Available:

  • 1130BA7AA – Cruise 130L Drink Grey Line AC/DC Module RH Hinge Position
  • 1130BA7BA – Cruise 130L Drink Grey Line AC/DC Module LH Hinge Position
  • 1130BA1MK – Cruise 130L Drink With 3-Side Flush Mounting Frame DC Only RH Hinge Position
  • 1130BA1NK – Cruise 130L Drink With 3-Side Flush Mounting Frame DC Only LH Hinge Position
  • 1130BA7MK – Cruise 130L Drink Inox With 3-Side Flush Mounting Frame AC/DC Only RH Hinge Position
  • 1130BA7NK – Cruise 130L Drink Inox With 3-Side Flush Mounting Frame AC/DC Only LH Hinge Position
  • 1130BB1AA – Cruise 130L Grey Line DC Only RH Hinge Position (381750)
  • 1130BB1BA – Cruise 130L Grey Line DC Only LH Hinge Position
  • 1130BB7AA – Cruise 130L Grey Line AC/DC RH Hinge Position
  • 1130BB7MK – Cruise 130L Inox With 3-Side Flush Mounting Frame AC/DC Only RH Hinge Position
  • 1130BB7NK – Cruise 130L Inox With 3-Side Flush Mounting Frame AC/DC Only LH Hinge Position

Ventilation:

It is very important that the compressor/condenser unit is well ventilated and that cold air can enter at the bottom, pass behind the fridge and warm air can leave at the top in the area where it is mounted. The natural flow of air from below and upwards behind the fridge can be increased by arranging  ventilation openings at the rear. Make sure there is a free area of 15 – 23 sq.in. below and behind the refrigerator to allow ventilation air to pass behind from below. (see diagram below).

Electrical Connections:

When connecting the refrigerator electrically, it is important that following points are considered:
Always use cables of suffi cient area. The area in the following table should be regarded as a minimum. * Always connect the refrigerator directly to the battery or to the battery main switch on the plus circuit. Do not connect it via the boats own control panel or other diversions as this can cause a voltage drop in the power supply. Use the included fuse holder with a 15A fuse. Use 7.5A fuse in a 24 volt system. The fuse shall be mounted on the plus cable.
*Connect the red cable to the positive (+) terminal and the black to the negative (-) terminal. Use tab type terminals for the connection to the electronic unit and other cable connectors of sufficient size for the cable size selected. * Do not connect the refrigerator direct to a battery charger. The battery charger must be connected to the battery.

Battery Voltage (Shut Down) Sensor:

To protect the batteries from becoming completely discharged, a battery voltage sensor switches off the compressor automatically at the following levels:

Wire Dimensions:

The correct wire gauge  and type must be used.

Weight 40 kg
Dimensions 120 × 80 × 97 cm
