1 x ICOM IC-M400BB Marine VHF Radio – Under Deck Black Box with COMMANDMIC HM-195B/SW (IC-M400BBE)
Noise Cancelling Technology – NMEA0183 – Built-In GPS
D Class DSC – Waterproof IPX7 – Space Saving Installation
Clean Installation for Limited Helm Space

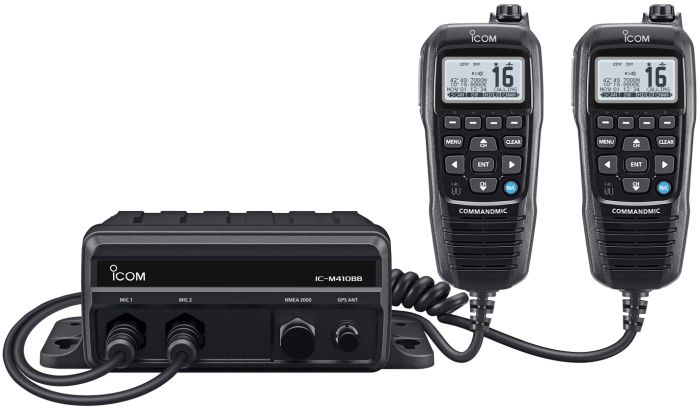

The IC-M410BB consists of a multi-piece, CommandMic™ and black box configuration. All operations including DSC, can be made from the CommandMic™, HM-195, and the RF unit can be installed in an out-of-sight place, up to 60 ft (18.3 m)* away from the CommandMic™.

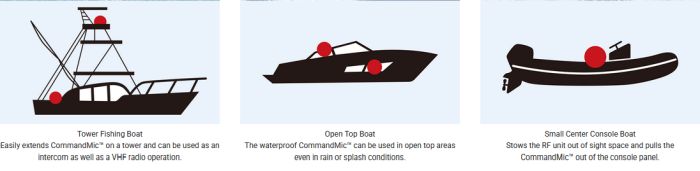

Install Up to Two Stations on Board, VHF Radio Available at Your Favorite Positions
Up to two CommandMic™ stations are available with the IC-M410BB providing access to the VHF radio and Intercom functions.
NMEA 2000™ and NMEA 0183-HS Provides Data Integration on Your Boat
NMEA 2000™ network provides plug-and-play data communication to inter-connect with other marine equipment such as an MFD (Multi-Function Display). The radio can send GNSS (GPS) position, DSC call, and radio channel to other equipment.
Active Noise Canceling – No Need to Shout into Your Microphone
The Active Noise Cancelling digitally removes background noise from both transmit and receive audio and provides clear communication in a noisy maritime environment.
Built-in Class D DSC, “Distress” Button Can be a Lifesaver in an Emergency Situation
With just a press of the “DISTRESS” button, the built-in DSC (Digital Selective Calling) system can digitally transmit distress information to the Coast Guard and/or other vessels. The DSC watch function continuously monitors the DSC channel (Ch. 70) for added safety and security.
Loud 1-Way RX Hailer for Radio Watch on the Deck or Tower
A built-in 15 W* amplifier increases the audio output to an external hailer speaker. The 1-way RX hailer function enables you to keep watch of the radio traffic on the deck or tower through the hailer speaker. You can also sound foghorn patterns from the hailer speaker.
Supplied Accessories
- 1 x Commandmic, HM-195GB
- Connection cable OPC-1540 (6.1 m, 20 ft)
- GPS antenna* (* GPS antenna is not supplied with the USA version.)
- Microphone hanger
- DC power cable
- Mounting base
- Connector cap
Other Features
- IPX7 waterproof, 1 m depth water for 30 minutes
- Integrated GPS receiver*
- AquaQuake™ function
- External speaker connection from the CommandMic™ cable
- Anchor Watch function
(* External GPS antenna is included with the EUR version. Optional with the USA version. ）
Optional Accessories:
- HM-195GB – COMMANDMIC™ (Black) – Use the IC-M423G from a separate cabin or tower. All functions of the IC-M423 can be controlled from the COMMANDMIC and can be used as an intercom with the IC-M423G.
- HM-195SW – COMMANDMIC™ (Super White) – Use the IC-M423G from a separate cabin or tower. All functions of the IC-M423 can be controlled from the COMMANDMIC and can be used as an intercom with the IC-M423G.
- OPC-1541 – Extension cable for COMMANDMIC HM-195 (6.1m)
- SP37 – Horn Speaker
- VHF Aerial Bases
- VHF Aerial Whips
