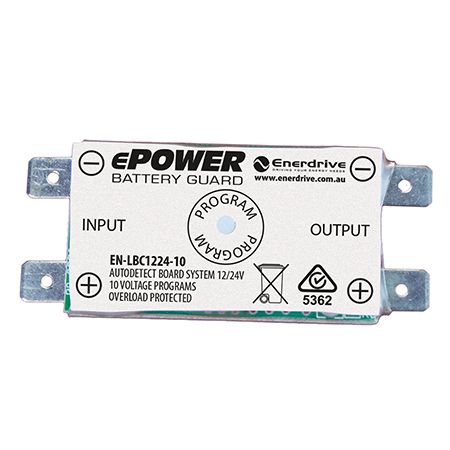

ePOWER 10A Low Battery Cutout - Protects Your Batteries (EN-LBC1224-10)
Low Voltage and High Voltage Protection with Alarm
10 Voltage Programs - Protects Your Batteries Before Complete Discharge and Damage
The ePOWER Low Battery Cutoff protects your batteries from non essential loads before the battery is completely discharged causing damage to batteries and potently denying your engine cranking power. These Low Battery Cutouts also protect connected electrical appliances against over voltage. The voltage load is disconnected whenever the DC voltage goes beyond 16V (12V mode) or 32V (24V mode). Microprocessor Controlled
The ePOWER LBC is microprocessor controlled with 10 different programs that engage or disengage the voltage load over several different voltage parameters.

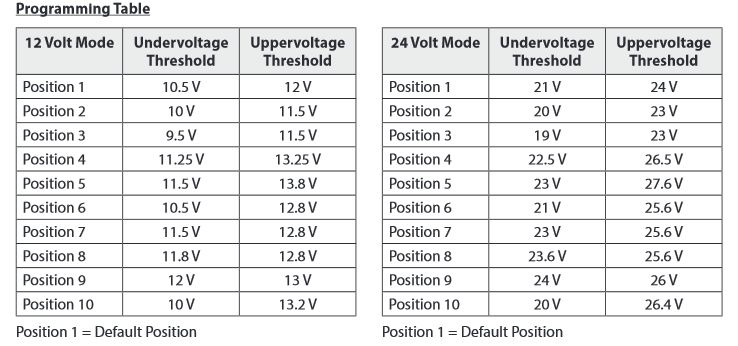

The new Battery Guard EN-LBC1224-10 (hereafter called BG) is an intelligent, microprocessor controlled, Battery Guard. The unit has four faston connections, 2 Input and 2 Output connections, to guarantee low losses. A yellow LED shows the status (ON/OFF). In program mode it shows the program position. The BG has an ‘Automatic Boardsystem Detection’; the BG detects which battery voltage (12 or 24V) is used. This does not need to be programmed manually. There is a choice out of 10 on/off threshold voltage programs, for both 12V and 24V, which can be programmed in a simple way. The BG uses very little current. During under voltage the BG uses just 2mA or less
Additionally, the ePOWER LBC range offers features like :
- Overvoltage Protection
- Ignition proof (no relay, no spark)
- Delayed alarm output
- Delayed load disconnect
Applications
- Recreational vehicles
- Service vehicles
- Maritime applications
