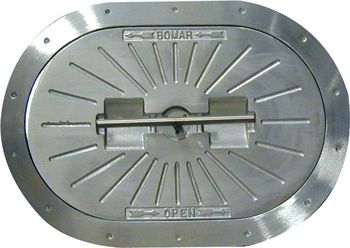

Bomar Hatch – OVAL – Aluminium Flush Watertight – Commercial Grade Series (BC41524)
380 x 610mm Opening – 450 x 680mm Cutout – 552 x 775mm Overall
Lloyds Approved
Features:

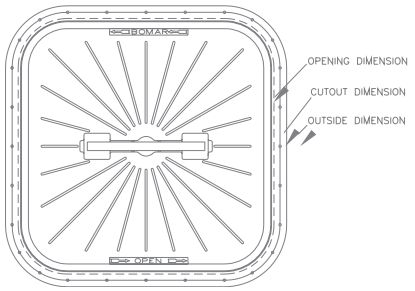

| Hatch # | Description | Opening (X) | Opening (Y) | Cutout (X) | Cutout (Y) | O.D. of Deck Flange (X) | O.D. of Deck Flange (Y) | Extends Below Deck | Weight Lbs. |
|---|---|---|---|---|---|---|---|---|---|
| NON-HINGED | |||||||||
| 41218 | Oval | 310mm | 464mm | 380mm | 534mm | 475mm | 629mm | 143mm | 27 |
| 41524 | Oval | 380mm | 610mm | 450mm | 680mm | 552mm | 775mm | 127mm | 34 |
| 42424 | Square | 610mm | — | 685mm | — | 787mm | — | 185mm | 45 |
| HINGED | |||||||||
| 41524-H | Oval | 380mm | 610mm | 520mm | 568mm | 597mm | 775mm | 127mm | 34 |
| Weight | 5 kg |
|---|---|
| Dimensions | 60 × 85 × 15 cm |
