BEP Marinco Panel Mount Battery Switch (1-2-Both-Off) Cluster with Dual Sensing DVSR – 113010 (SUR CC-801)

BEP Marinco Panel Mount Battery Switch (1-2-Both-Off) Cluster with Dual Sensing DVSR - 113010 (SUR CC-801)

$399.00

BEP Battery Switch Cluster with Digital VSR - Contour Connect Single Engine Module with Automatic Charging for Two Battery Banks

BEP Marinco Panel Mount Battery Switch (1-2-Both-Off) Cluster with Dual Sensing DVSR - 113010 (SUR CC-801)

Single Engine - Two Battery Banks

Base: 207mm x 207mm Height: 69mm

BEP Contour Connect Battery Distribution Cluster with DVSR - Single Engine Two Battery Banks

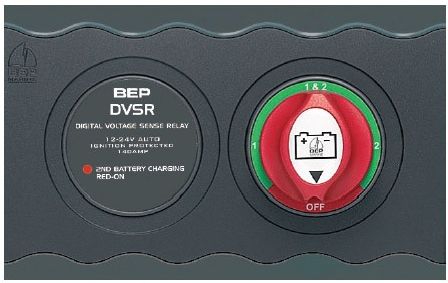

Pre-wired, flush mount module that combines the 701S-PM battery selector switch and a 140 amp dual sensing Voltage Sensitive Relay in an aesthetically pleasing, modular housing.  Panel fastening is concealed by interchangeable clip-on strips (light grey is supplied as standard) and clip-on cover at rear ensures ABYC compliance of the installation. Supplied with one interlink joiner enabling simplified system expansion.

Battery Distribution Panels

Fast fit, flush mounting battery distribution panels

  1. Use template to mark rectangular hole in fascia
  2. Cut hole
  3. Fit panel and screw into place
  4. Add trim pieces
  5. Connect cables
Downloads:

Weight 0.5 kg
Dimensions 17 × 10 × 8 cm
