BEP Marinco Contour AC Mains Circuit Breaker Control Panel
Manual Changeover Switch and 4 AC Circuit Breakers (113220 - 900-AC1)
Suit Twin AC Input Installations
eg Shore Power and Genset or, Shore Power and Inverter
Contour styled circuit breaker control panels with two double pole mains circuit breakers and change over control slide. Ship/shore transfer switch features a slide gate that will only allow either shore power or ship power (or shore power or inverter) to be operational at any one time (113219 & 113221 excluded).
These panels can be supplied with no meter, analog meter or digital metering: analogue meters for either AC volts or amps; digital meters switchable to show AC volts, amps and frequency.
Features:
- Analogue volt meters, 2.5% of full scale accuracy
- AC digital meters, high resolution 12mm high figures in LCD display, low power dissipation, 200 mV sensitivity, 1% accuracy
- Durable black powder coated marine grade aluminium base panel
- Stylish curved plastic facias covering all circuit breakers
- Marine quality, magnetic, hydraulic, UL listed, trip free breakers
- Circuit identification labels supplied
- Negative buss bar
- Red LED identification for circuits ‘on’
- Green LED back lighting for meters and labels
- Two double pole mains circuit breakers with change over control slide for ship or shore power input (113219 & 113221 excluded)
- Rated to 250v AC (110 volt option available)
- Digital metered panels supplied with AC volt and amp transducer module
- Reverse polarity indicator
- Label Sheet #5

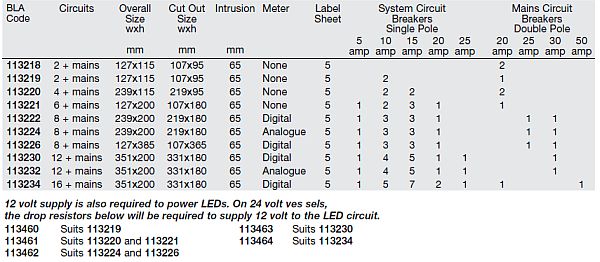

- 12 volt supply is also required to power LEDs. On 24 volt vessels, the drop resistors below will be required to supply 12 volt to the LED circuit.
Options:
- 12 volt supply is also required to power LEDs. On 24 volt vessels, the drop resistors below will be required to supply 12 volt to the LED circuit.
- 113460 - Suits 113219
- 113461 - Suits 113220 and 113221
- 113462 - Suits 113224 and 113226
- 113463 - Suits 113230
- 113464 - Suits 113234
- <View Label Sets
- BEP Marine Contour Panel Back Covers - Cover and insulate terminals behind your panel
