BEP Marinco Contour 1000 Interior 6 Switch Panel with Fuses - 12 Volt (1000-6W)
Suit Caravan, Motor Home-RV, Boat or Yacht
The BEP Contour 1000-6W 6 Way Switch Panel With Fuses is Injection moulded plastic panel with contoured design includes six simple two position rocker switches and individual ATC fuses for each circuit. The A
TC fuses are accessible from the front cover. The BEP Contour 1000-6W 6-Way Switch Panel With Fuses has Square dimensions allow for modular mounting of multiple panels in vertical or horizontal configuration.
- Each switch features an integral system on red LED and is rated to 16 amps.
- Maximum panel load is 50 amps @ 12 Volts
- Suitable for 12 volt power supply only.
- Panels are modular for vertical or horizontal stacking. Spacer supplied for accurate mounting spacing.
The BEP Contour 1000-6w 6 way Switch Panel With Fuses panel is not waterproof and should be used in interior applications only.
Options:
- 113716 - Label set

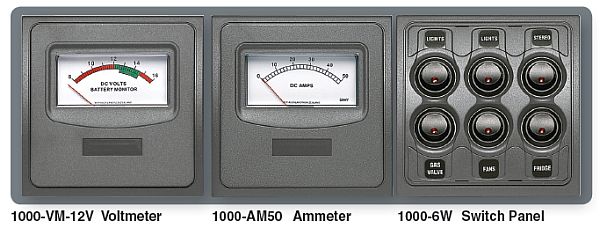

- 113343 - Contour 1000 Analog Ammeters 0-20 Amps Range (Includes 50A - 50mV external shunt)
- 113344 - Contour 1000 Analog Ammeters 0-50 Amps Range (Includes 50A - 50mV external shunt)
- 113348 - Contour 1000 Analog Voltmeter (expanded 8-16 volt range)
- 1000-6W - 24V - 24Volt Version 6 Way Switch Panel With Fuses
