Lewmar Ocean Hatch - Size 44 Flat Base
437 x 437mm - 39644050 (170122)
With its classic style, the Lewmar Ocean Hatch is fitted to thousands of boats around the world. Its rugged construction provides the ultimate protection against the elements, whatever conditions you might face.
- All sizes suitable for CE Area 2 (Deck, Coachroof, Cockpit and Transom)
- Friction levers hold the lid open in any position up to 95°
- Anodised aluminium frame for corrosion resistance
- CE Approved
|
Lower Frame (mm)
|
Acrylic Colour
|
Hatch Weight (kg)
|
Acrylic Window Thickness (mm)
|
|---|---|---|---|
|

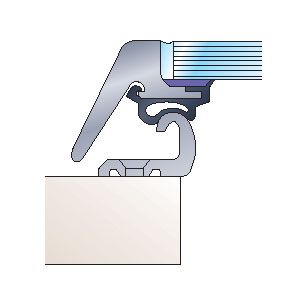

Flat Base
|
Smoke Grey
|
5
|
12
|
|
Length X (mm)
|
Width Y (mm)
|
Height Z (mm)
|
Radii R (mm)
|
Hinge Length HX (mm)
|
Hinge Width HY (mm)
|
Cut-Out Length (Flat/Flange) X1 (mm)
|
Cut-Out Width (Flat/Flange) Y1 (mm)
|
Cut-Out Radii (Flat/Flange) R1 (mm)
|
|---|---|---|---|---|---|---|---|---|
|
509
|
509
|
43
|
76
|
4
|
302
|
437
|
437
|
40
|
