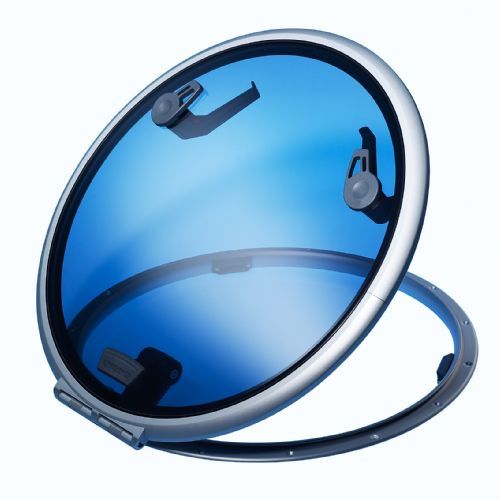

Lewmar Low Profile Round Hatch – Size 18 – 420mm Cut Out – Self Suppporting Lid – CE Certified (170164)

Sale!

Original price was: $1,329.00.Current price is: $1,172.00.

Lewmar Low Profile Round Hatch - Size 18 - 420mm - Self Suppporting Lid - 39918030 (170164)

Lewmar Low Profile Round Hatch - Size 18

  420mm - Self Suppporting Lid -  39918030 (170164)


The Low Profile hatches have soft styling and sleek looks. They are ideal for use on power craft.
The smaller ventilation hatches are suitable for any deck location on sail boats and the larger hatches can be used as foredeck hatches on small to mid size yachts.

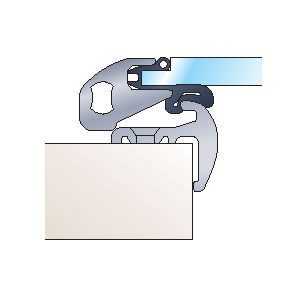

The hatch also features Lewmar’s unique sealing system allowing easy acrylic replacement.
The sleekly designed Lewmar Low Profile Hatch is ideal for use on a powerboat.
Smaller ventilation hatches are a better fit for sailboats, while the larger sizes can be used as foredeck hatches on smaller to mid size yachts. Lewmar hatches feature Lewmar's unique sealing system allowing easy acrylic replacement. All sizes suitable for CE Area 2 (Deck, Coachroof, Cockpit and Transom).

  • Outside handles allow the hatch to be opened from on deck if it is not locked
  • Friction levers hold the lid open in any position up to 95°
  • Anodised aluminium frame for corrosion resistance
  • Curved upper frame for strength as well as modern styling
  • CE Approved
  • Available in Round and D-Hatch configuration



Support System
Lower Frame (mm)
Acrylic Colour
Hatch Weight (kg)
Acrylic Window Thickness (mm)
Self Supporting
15
Smoke Grey
3.8
8

Diameter (mm)
Height Z (mm)
Length with Hinge HX (mm)
Hinge Width HY (mm)
Cut-Out Diameter (mm)
490
25
493
141
420

Weight 4.5 kg
Dimensions 50 × 53 × 8 cm
